Teambox I + II - Pod System
Verified by manufacturer 24 hours ago
Teambox I
Teambox I
Range of acoustic pods, designed for offices and meeting spaces.
Application
For commercial applications including offices.
Description
Range of acoustic pods, designed for offices and meeting spaces.
Includes highly effective metal casing panels, which ensure minimal reverberation times.
Features and benefits:
- 37 dB acoustic performance.
- Designed for use as an individual workspace to aid concentration in busy office areas.
- Versatile and adaptable.
- Sustainable - manufactured from recycled materials.
- Ready to use - delivered in 11 sections.
- Flush-mounted structural glazing provides a high-quality design.
- Integrated ventilation system and flow ducts.
General information
Color | Clear Guidance for specification option: Glass. Other Guidance for specification option: Frames: Polyester powder-coated. |
Finish | Powder-coated Matt |
Material | Aluminium Glass Fabric |
Shape | Rectangle |
Length | 1600 mm |
Width | 1100 mm 2200 mm |
Height | 2300 mm |
Uniclass | |
CAWS | K30/130 Relocatable partition system K30/10 Relocatable partition system |
Specification data - Meeting booths
Classification data | |
Environmental performance | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. |
Configuration | |
Shape | Rectangular pod with roof. |
Size | 1600 x 1100 mm. |
Height | 2300 mm. Guidance for specification option: Internal headroom: 2100 mm. |
Colour | Polyester powder-coated, RAL 9016. Guidance for specification option: Traffic white, matt. |
Furnishings | |
Tables and desks | Manufacturer guidanceConsult manufacturer and insert requirements. |
Accessories | Manufacturer guidanceConsult manufacturer and insert requirements. |
Acoustic performance | 37 dB. Guidance for specification option: Reverberation time: <0.5 s. |
Frame finish | Polyester powder-coated, RAL 9016. Guidance for specification option: Traffic white, matt. Polyester powder-coated, RAL 9005. Guidance for specification option: Jet black, matt. |
Ventilation | Ceiling integrated, output up to 100 m³/h. |
Sustainability data
Material | Aluminium Glass Fabric |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceMade from recycled materials. |
Literature

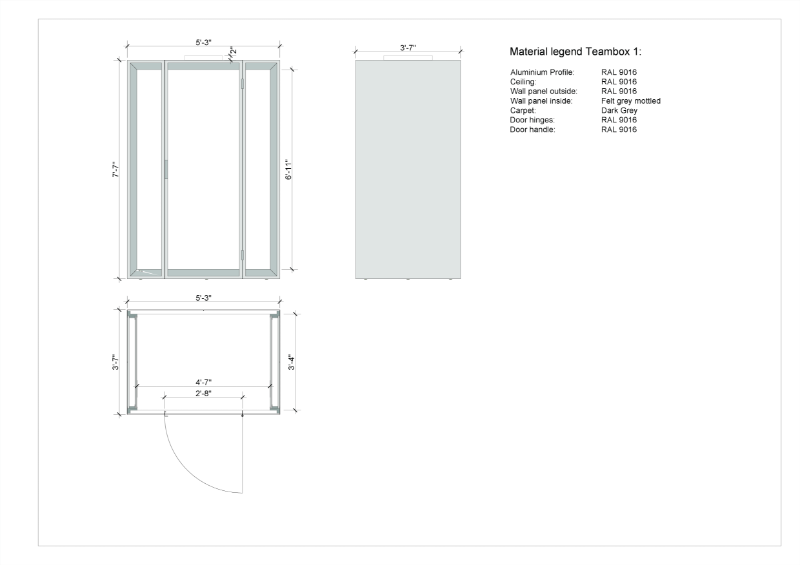

Teambox I - Drawing

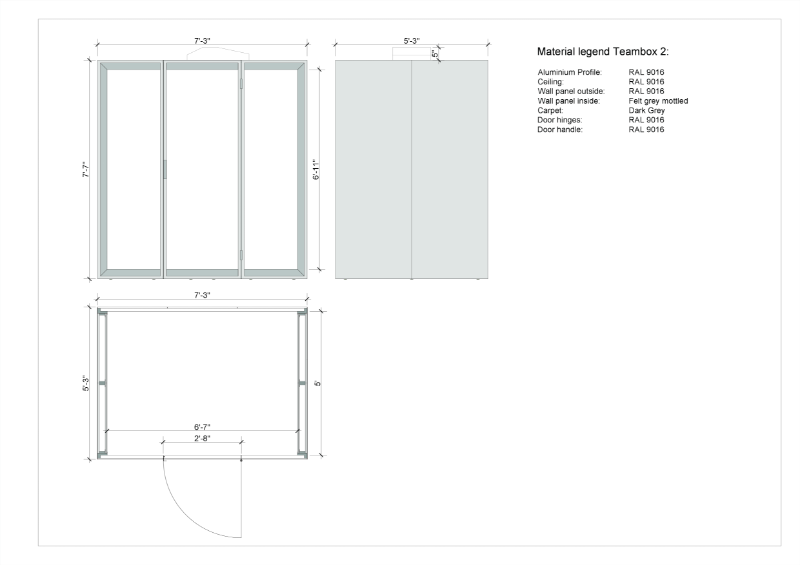

Teambox II - Drawing
