THERM+ S-I/ FS-I Steel Facades - Curtain Wall

Guidance for specification option:

Consult manufacturer and insert requirements.

Guidance for specification option:

A wide range of connectors are available, consult manufacturer's literature and insert requirements.

Guidance for specification option:

• Various exterior gaskets and insulating block options available.
• Gradual adaptation of the insulation value.
• Maximum thermal insulation up to Uf = 0.80 W/(m²K) including screw influence.
• Certified passive house curtain wall.
• Economic solution.

Guidance for specification option:

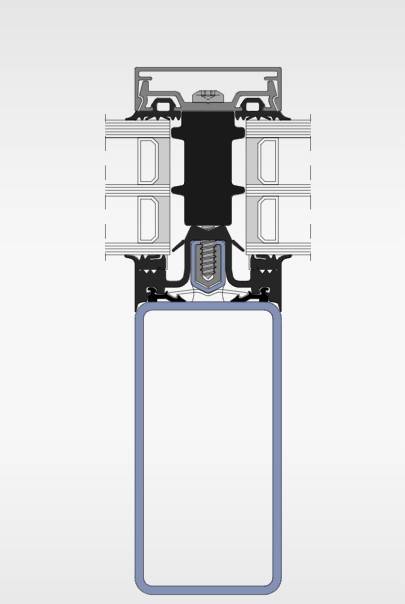

• Optimized shape for maximum thermal insulation and efficient fabrication.
• Complete covering and sealing of the base profile.
• Perfect and easy fitting on the structural profile (without silicone).
• Two options of gaskets with flaps for transom and base drainage as well as draining within the continuous gasket at the structural connections.
• Reliable drainage in two or three levels by simply notching.
• Special accessories for all applications, e. g. transom and mullion sealing elements.

Guidance for specification option:

• Type S for assembly with lateral guidance and fixation by a synthetic base profile.
• Type L with lateral lips for visual optimization using big radiuses of structural profiles lateral guidance like type S.
• Type D for direct glazing on the structural profile with fixation in the screw channel.

Guidance for specification option:

• For all series I and V of the THERM⁺ systems.
• All system widths.
• Subsequent installation, including existing curtain walls and roofs, possible at any time.
• For 20 to 64 mm infill thicknesses.
• Only use in "pairs".

Guidance for specification option:

• All system widths.
• For clipped cover profiles, visibly screwed pressure profiles and flat pressure profiles.
• Remain hidden in the facade construction.
• Subsequent and secure mounting of scaffolding always possible without any expenditure.

Guidance for specification option:

• For all THERM⁺ systems in all face widths.
• Fastening of very heavy loads (e.g. rendered balcony or large canopy).
• High loadbearing capacity and reliable structural solution.
• Vertical loads up to 12 kN per fixture unit.
• Pressure profiles with clip on cover profiles or visibly screwed.
• Aluminium fixture unit for individual handling, colour and surface coating.

Guidance for specification option:

• For all THERM⁺ systems of the series I and V.
• Widths of supporting profile of up to 60 mm.
• Available as finished brackets or as unfinished goods to be cut individually.
• Variations for base points, floating points and mullion joints available.

Guidance for specification option:

• For all series I and V of the THERM⁺ systems.
• System widths 50 and 56 mm.
• Use in connection with SG joint.
• Available in 50 x 90 mm, 56 x 90 mm and Ø 75 mm (roof) dimensions.
• For infill thickness 20 to 64 mm.

Guidance for specification option:

An extensive range of accessories are available, consult manufacturer and insert requirements.

Guidance for specification option:

The standard THERM⁺ system can easily be upgraded to passive house certified standard with minimal additional components. Passive house projects can therefore be fitted with energy saving glazing in a generous, cost effective way, independent of their supporting projects.

Guidance for specification option:

The THERM⁺ Structural Glazing SG2 curtain wall systems feature the most intricate glazing technique. A narrow silicone joint is the only visible line between the insulation glass panes. Retention of the internal pane is enabled easily, quickly and securely with the use of SG glazing toggles. By utilising the SG insulating block, curtain walls achieve outstanding thermal insulation values.

Guidance for specification option:

Minor additions to the standard THERM⁺ system are all that is needed to construct fire resistant curtain wall in a range of protection classes. The maximum size of 1920 x 3000 mm glazing panels provides a new dimension in fire protection.

Guidance for specification option:

All THERM⁺ curtain wall variants may be made burglar resistant in accordance with the German resistance categories RC2 and RC3 by adding a few supplementary system components. Providing maximum creative possibilities, all system widths and all types of pressure plates with clip on cover caps, visible screw fixings, as well as flat pressure profile plates (in RC2) may be used.
