TL-6620/6621 Balustrade - Glass Railing System - Frameless Glass Balustrade System

Name: TL-6620/6621 Balustrade - Glass Railing System - Frameless Glass Balustrade System
Brand: OnLevel Ltd
SKU: aoiAnRnrfMHsiQMMWNvHNb

Verified by manufacturer 2 days ago

TL-6620 - Top Mount

OnLevel Ltd

Product certifications:

Load Tolerance Test Certificate
Certificate type
Load Tolerance Test Certificate
Certificate type

Frameless glass top or side-mount balustrade system, suitable for loadings up to 1.5 kN.

Jump to:

Request BIM

+44 (0)161 8049500 Website

Application

Can be used in both interior and exterior applications, withstands a linear load of up to 1.5 kN, and is appropriate for glass thicknesses up to 21.52 mm.

Description

Frameless glass top or side-mount balustrade system, suitable for loadings up to 1.5 kN.

Features and benefits:

Slimline, elegant design and low-maintenance.
Uses TURBOFLEX mounting technology.
Extension pin location holes.
Build-in drainage.
Can be used with 2.0 kN top covers.
For glass thicknesses: 15–21.52 mm.
Easy installation.
Align glass by hand.
Screw fixing.
Tested in accordance with BS 6180.

Dependent on design, components can include:

TL-6620:

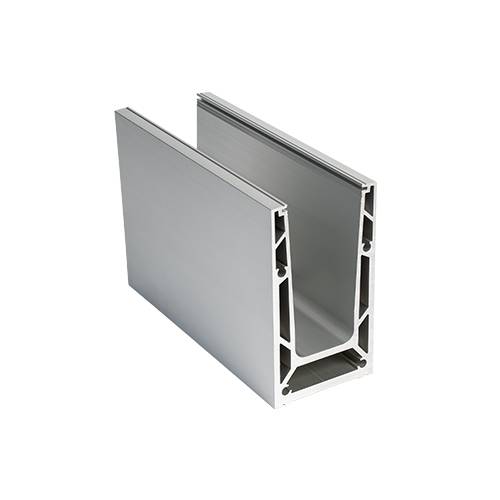

Glass profiles (U-profile). 135 x 75 mm.
Inside/ outside corners 90°. 125 x 200 mm.
End caps.
End caps for staircase.
Extension pin.
Fixing anchors.
FLEXFIT glass adjustment tool.

TL-6621:

Glass profiles (U-profile). 135 x 75 mm.
Inside/ outside corners 90°. 125 x 200 mm.
Cover cap.
End caps.
End caps with cover cap.
End caps for staircase with cover cap.
Extension pin.
Fixing anchors.
FLEXFIT glass adjustment tool.

General information

Color	Silver Other Guidance for specification option: RAL coloured coatings are available.
Finish	Mill Natural Coated
Material	Aluminium Glass
Shape	Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year Guidance for specification option: Glass warranty.

Uniclass	Ss_25_60_05_05 Balustrade and guarding systemsPrimary
CAWS	L30/55 Proprietary balustrades L30/560 Proprietary balustrades

SKU Code	TL-6620, TL-6621

Specification data - Balustrade and guarding systems

Classification data
Infills	Laminated glass sheets Manufacturer guidance For glass thicknesses between 15–21.5 mm.
Fixing to parent structure	Internal - fixing anchor (91.3501.210.81). Guidance for specification option: Zinc-plated steel. Fischer fixing anchor FAZ II 12/10. External - fixing anchor (91.3501.210.30). Guidance for specification option: AISI 316. Fischer fixing anchor FAZ II 12/10. Other. Guidance for specification option: Consult manufacturer and insert requirements.
Standards	To BS 6180.
Mounting	Top mount.
Dimensions	- Manufacturer guidance Consult manufacturer and insert requirements. Include design drawings if available. Profile lengths: 5000 mm. Heights: For standard applications, heights up to 1200 mm.
Loading	Up to 1.5 kN.
Profile finish	Mill finish. Plain aluminium. RAL. Guidance for specification option: Insert requirements.
