Tri-Guard® Fencing

Name: Tri-Guard® Fencing
Brand: Jacksons Fencing
SKU: 89WPQ2LV3tGE9nJXYUmSMY

Verified by manufacturer 5 months ago

Jacksons Fencing

Third party certifications:

ISO 9001 Quality Management
Certificate type

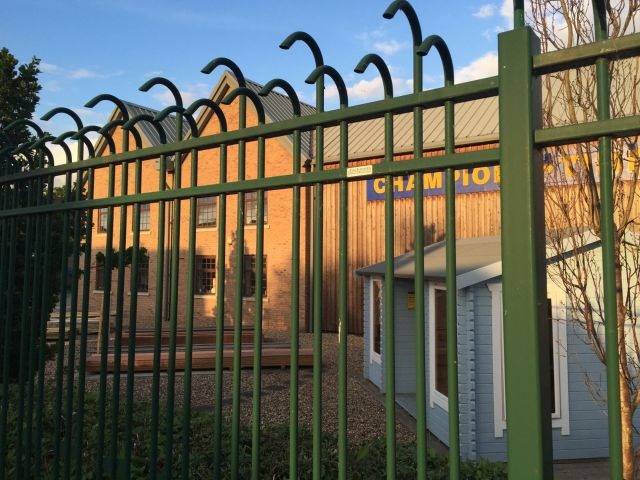

Tubular rail fencing with a unique design, fully welded pale-through-rail construction, pales set in clusters of three with curved tops.

Jump to:

0800 408 4757 Website

Application

For commercial, industrial, transport and public buildings.

Description

Tubular rail design fencing with a unique design to provide a decorative and highly secure boundary. Fully welded pale-through-rail construction with pales set in clusters of three with curved tops for a distinct and intimidating appearance.

Features and benefits:

Seamless, concealed rail-to-post fixing.
Strong, with 19 mm pales grouped in clusters.
Anti-climb design with curved spike on each post top.
Easy to install.
Pale spacing conforms to building regulations for anti-trap.
Can be stepped to accommodate sloping ground.
Vandal proof.
High security fencing solution a distinctive design.
Low maintenance.
Hot-dip galvanized finish as standard to BS EN 1461 and can also be powder coated to BS EN 13438.
25-year guarantee.

General information

Color	Green Black Other Blue Grey Brown White Red Yellow Show more
Finish	Galvanized Powder-coated
Material	Steel
Width	3010 mm
Height	2200 mm 2500 mm
Warranty description	25 year

Uniclass	Ss_25_14_61_86 Steel vertical bar fencing systemsPrimary
CAWS	Q40/30 Proprietary fencing Q40/340 Steel vertical bar fencing Q40/430 Proprietary fencing

Product range	Vertical Bar Railings

Specification data - Steel vertical bar fencing systems

Posts	80 x 60 mm rectangle hollow section (RHS) posts. Guidance for specification option: Complete with welded curved spike anti tamper fixings with internal connectors and no visible bolts. Post centres: 3010 mm. Overall length: 3000 mm.
Post foundations	Overlength set in concrete. Guidance for specification option: Standard. Base plated to bolt down onto concrete. Cranked to suit wall mounting.
Rails	Three horizontal rectangular hollow section (RHS) rails, 50 x 25 mm.
Panels	2200 mm high. Guidance for specification option: Vertical round hollow section 19 mm pales are grouped in threes with the top curved over. one row of metal discs are welded between the pales. 2500 mm high. Guidance for specification option: Vertical round hollow section 19 mm pales are grouped in threes with the top curved over. two rows of metal discs are welded between the pales.
Fence topping	Built-in decorative deterrent.
System accessories	None. Matching gates. Guidance for specification option: Single and double leaf available. Specified separately.

Colour/ Finish	Galvanized. Guidance for specification option: Hot-dip galvanized to BS EN 1461. Galvanized and powder-coated, black RAL 9005. Guidance for specification option: Hot-dip galvanized and powder coated to BS EN 13438. Galvanized and powder-coated, green RAL 6005. Guidance for specification option: Hot-dip galvanized and powder coated to BS EN 13438. Galvanized and powder-coated, other. Guidance for specification option: Insert requirements, BS or RAL code. Hot-dip galvanized and powder coated to BS EN 13438. Marine coat. Guidance for specification option: For applications near sea water.
