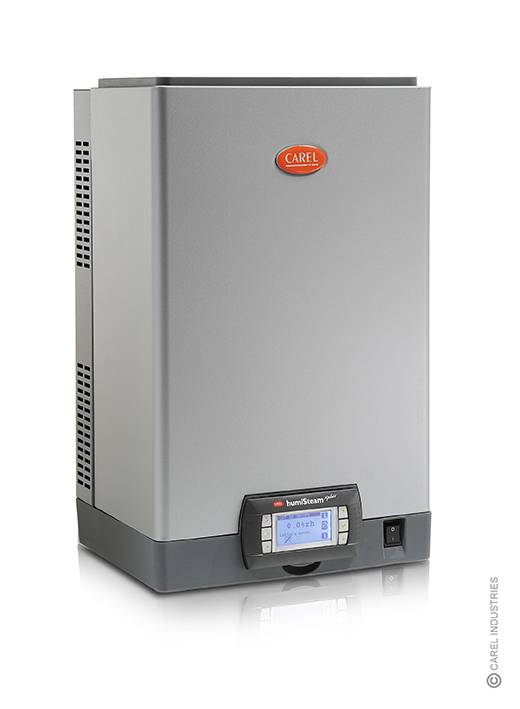

UE - humiSteam - Steam Humidifier Range

Verified by manufacturer 3 months ago

UE001 - rated steam production: 1.5 kg/h

CAREL Variant:
Third party certifications:
  • Watermark

    Watermark

    Certificate type

Immersed electrode humidifiers which are designed to generate safe steam humidification for duct, in-room, or steam bath application.

Jump to:
+44 (0)20 8391 3540 Website

Application

humiSteam basic (Y):

  • Suitable for installation in civil environments, offices, hospitals and industrial facilities, and is designed for installation both in rooms, using the steam blower, and air ducts, using the linear steam distributors.
  • Suitable for applications where steam production is controlled by an external signal, i.e. BMS or humidistat, and comes in a range from 1.5 to 65 kg/h.


humiSteam X-plus (X):

  • For all applications that require high levels of connectivity to ensure maximum control over operation.
  • The limit probe reading, in addition to the temperature and relative humidity probes, guarantees greater safety and hygiene. Moreover, modulating operation ensures continuous and efficient control of steam production. Steam production range 1 to 130 kg/h.


humiSteam Wellness (W):

  • HumiSteam Wellness, part of the family of immersed electrode steam humidifiers, is designed for steam bath installations.
  • Operation in time bands at different temperature set points.
  • External device management: four pumps (for essences and disinfection), two fans, one light drain pump to facilitate the removal of scale when draining the water. Steam production range 1 to 65 kg/h.

Description

Immersed electrode humidifiers which are designed to generate safe steam humidification for duct, in-room, or steam bath application. This unit is designed to work with mains water supply with a conductivity level between 75 μS and 1250 μS.

Mains water contains a certain quantity of dissolved mineral salts and is slightly conductive therefore the principle of these units relies on applying voltage to metal electrodes immersed in the water which in turn creates an electric current flow that heats the water until producing steam.


Features and benefits:

  • Reliability: The patented Anti Foaming System (AFS) detects and manages foam to prevent droplets of water being carried by the steam.
  • Performance: Quick start-up and operation with a wide range of feedwater conductivity values.
  • Safety: Modulating limit probe for maximum safety in the ducts.
  • Flexibility: Possibility to use mains water, with the software able to automatically adapt to a very wide range of feedwater characteristics.
  • Supervision: The new solution with independent connection for remote supervision (X-Plus only).


Certifications:

CE, ETL (UL998), TÜV and EAC.

General information

Color

Silver

Finish

Galvanized

Guidance for specification option:

Housing.

Material

Metal

Guidance for specification option:

Housing.

Shape

Rectangle

Length

365 mm

545 mm

635 mm

1150 mm

Width

275 mm

375 mm

465 mm

Manufacturer guidance

Unit depth.

Height

712 mm

815 mm

890 mm

Warranty description

Two year

Guidance for specification option:

Materials warranty (from the manufacture date, excluding consumables).

Uniclass

Pr_65_67_39_84 Steam humidifiersPrimary

Specification data - Steam humidifiers

Electrical supply type

Single phase, 208 V a.c., 50/ 60 Hz (U).

Single phase, 230 V a.c., 50/ 60 Hz (D).

Manufacturer guidance

Voltage: 10 to -15%.

Other voltages available on request, consult manufacturer for details.

Steam source

Electrode boiler (immersed electrodes).

Material

Galvanized metal housing.

Access doors for maintenance

Manufacturer's standard.

Accessories

None.

DP/*R0 lance for duct (standard).

DP/*RU lance for duct (high capacity).

DP/*RH lance for duct (high efficiency).

SDP steam nozzle, 12 mm hole.

SDP steam nozzle, 22 mm hole.

SDP steam nozzle, no hole (to be drilled).

Hoses.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Probe - DPW* wall sensor.

Probe - DPP* sensor for industrial environments.

Probe - DPD* duct sensor.

Probe - ASET* temperature sensor for steam baths.

Fan blower, VS*.

Fan blower, VR*.

Manufacturer guidance

Plastic.

Up to 15 kg/h.

Steam inlet suitable for 22 and 30 mm diameter.

Dimensions

365 x 375 x 712 mm.

Manufacturer guidance

Length x width (depth) x height.

Weight

16.6 kg.

Connection

Standard; code 0.

Network type

Modbus®.

Guidance for specification option:

Standard (built in).

BacNET RS485.

BacNET Ethernet.

Modbus Ethernet.

LON.

Show more

Steam

Rated production: 1.5 kg/h.

Power consumption

1.12 kW.

Connections

Steam: 22/ 30 mm diameter.
Water fill: 3/4”G male.
Water drain: 40 mm.

Pressure

Outlet pressure limits: 0–1500 Pa.

Cylinders

Standard; code 0.

Standard cleanable; code C.

For low conductivity; code 1.

For low conductivity, cleanable; code 2.

Manufacturer guidance

One cylinder.

Conditions

Operating: 1 to 40°C, 10–60% relative humidity.
Storage: -10 to 70°C, 5–95% relative humidity.

Ingress protection

IP20.

Model

Basic (Y).

Guidance for specification option:

  • Can be managed by external input signals or using relative humidity probes, with operation in ON/ OFF or proportional mode.
  • Steam production range: 1–65 kg/h.

X-plus (X).

Guidance for specification option:

  • Through extensive integration with BMS systems, the UEX range of humidifiers represents the preferred solution for all applications that require high levels of connectivity to ensure maximum control over operation.
  • The limit probe reading, in addition to the temperature and relative humidity probes, guarantees greater safety and hygiene. Moreover, modulating operation ensures continuous and efficient control of steam production.
  • Steam production range: 1–130 kg/h.

Wellness (W).

Guidance for specification option:

  • Designed for steam bath installations.
  • Operation in time bands at different temperature set points
  • External device management: 4 pumps (for essences and disinfection), two fans, one light.
  • Drain pump to facilitate the removal of scale when draining the water.
  • Steam production range: 1–65 kg/h.

Water

Fill:
· Temperature limits: 1 to 40°C.
· Water pressure limits: 0.1 to 0.8 MPa (1 to 8 bar).
· Instant flow rate: 0.6 L/m.
· Total hardness: 10 to 40°fH.
· Conductivity limits: 75 to 1250 μS/cm.
Drain:
· Temperature: <100°C.
· Instant flow rate: 9 L/m.

Fan

One blower, type VSDU0A; rated air flow: 288 m³/h.

Guidance for specification option:

Power supply: 24 V a.c.

Rated power: 46 W.

Classification

European version, code 01.

UL certified version, code U1.

China and APAC market version, code C1.
