VMS Ridgelight 5° with Beams
Verified by manufacturer 1 month ago
Modular rooflight.
Application
For commercial and public buildings. Suitable for a wide variety of circulation spaces, gallery spaces and small internal courts where people meet or pass in transit.
Description

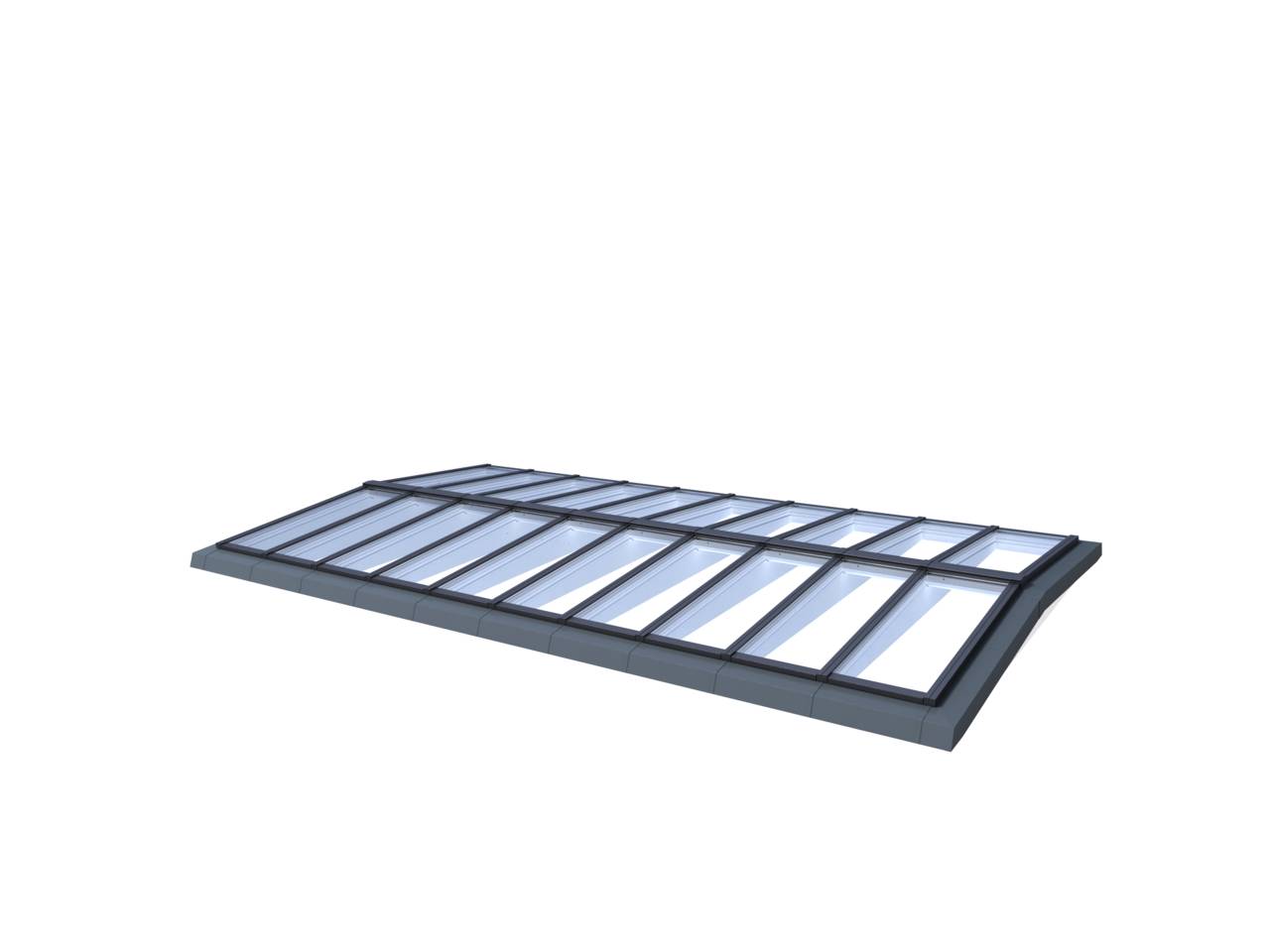

A roof light system for commercial and public buildings. The system consists of prefabricated modular skylights, including profiles, panes, flashings, control systems for natural and smoke ventilation and roller blinds.
Features and benefits:

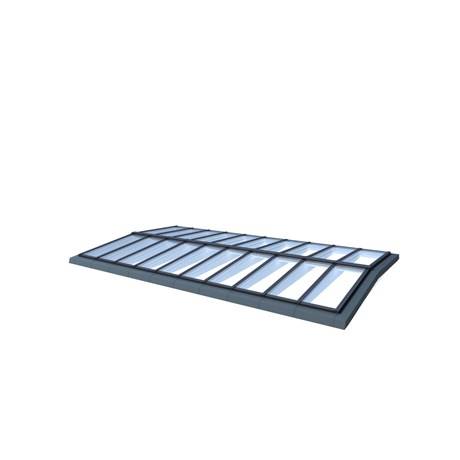

- Ridgelight at 5° pitch generates the illusion of a small glass roof with discreet transverse horizontal supporting beams.
- Framing material ensures very low U-value.
- Complete daylight and ventilation control.
- Superior environmental profile compared to aluminium rooflights.
- Slim profiles and flush exterior surface provide an elegant appearance.
- Integrated chain actuator creates an identical look for fixed and venting modules.
- Internal blinds complete the interior with a 'free-floating' design.
- The roof lights are mounted on a rail system that guarantees fast and secure installation.
General information
Color | Grey White Black |
Finish | Powder-coated Lacquered |
Material | Aluminium Composite Guidance for specification option: (80% Fibreglass / 20% Polyurethane). |
Shape | Rectangle |
Width | 675 mm 750 mm 800 mm 900 mm 1000 mm |
Height | 1200 mm 1400 mm 1600 mm 1800 mm 2000 mm |
Warranty description | Ten year Guidance for specification option: On modules and flashings |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights |
Specification data - Framed rooflights
Form | 5° Ridgelight with beam modular skylight. |
Size | Available in modules from 675 x 1200 mm (minimum size) to 1000 x 2400 mm (maximum size). |
Product performance | |
Fire performance | |
Fire resistance | To EN 1365-2 / EN 13501-2 + A1. |
Reaction to fire | To EN ISO 11925-2 / EN 13823, Class B. |
Whole window U-value | 1.1 W/m²K / 1.4 W/m²K.Guidance for specification option: Double glazed 0.7 W/m²K / 1.0 W/m²K.Guidance for specification option: Triple glazed |
Frame | |
Material | Aluminium. |
Finish | |
Coating | Scratch-resistant powder lacquer. |
Colour | White.Guidance for specification option: Inside surface / Granite grey – cladding |
Film thickness (minimum) | 40 μm. |
Glazing or infill | |
Type | Mono-pitched toughened outer glass and laminated inner safety glass solution. |
Construction | Double glazed.Triple glazed. |
Colour | Not required.Grey (4083).White (4084).Black (4085).White, fire resistant (4094). |
Coating | Not required.Low E coating.Sun 1.Guidance for specification option: light sun protection Sun 2.Guidance for specification option: advanced sun protection |
Integral kerb | Timber with metal plate - not suitable for Ridgelight or Atrium Ridgelight.Structural steel.Concrete with metal plate. |
Operation | |
Type | HFC, Fixed.HVC, Smoke ventilation.HVC, Natural ventilation. |
Control | Not required.Chain actuator. |
Accessories | Not required.Control Unit (KLC 400).Control Pad (KLR 200).Rain and wind sensor set (KLA S105).Control Switch (KLI 110). |
Execution | Installation of framed rooflights. |
Surface spread of flame | To EN 14351-1 / TS1187 / EN 13501-5 + A1, BROOF (t1) and BROOF (t4). |
Sustainability data
Country of product manufacture | Denmark |
Material | Aluminium Composite Guidance for specification option: (80% Fibreglass / 20% Polyurethane). |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | kg CO₂ eq/m² Self declared Guidance for specification option: Meets BRE EN 15804:2012+A1:2012 |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 ARCHICAD | - | 1 |
 Revit | Revit 2015 | 3 |
Literature
VELUX Modular Skylights
