150 mm Circular Gratings NPSM - VX-F020
150 mm Circular Gratings NPSM - VX-F020
Cast iron floor drain in compliance with BS EN 1253.
Application
Suitable applications:
- Suitable for all commercial and industrial applications.
- Grates available for tiled, marble, terrazzo, concrete, vinyl and resin floors.
- Gratings Load class options as depicted in BS EN 1253:
- K3 – pedestrian areas and wet room applications such as shower areas, bathrooms, swimming baths, leisure centres, balconies, retail areas, hotels, offices, schools, public buildings, hospitals, prisons, terraces and roof gardens.
- L15 – areas of light vehicular traffic such as cycle ways and domestic drives.
- M125 – car parks.
Description
Cast iron modular gullies with spigot or BSP outlets in compliance with BS EN 1253.
Features and benefits:
- Simplified range of trapped and un-trapped cast iron gullies.
- Lighter weight P-trap and S-trap gullies.
- Cast iron modular gullies with spigot/BSP outlets that configure to:
- Deep sumps/bell traps/brewery traps.
- Gratings and rodding eyes.
- Stainless steel.
- Cast iron.
- Anti-ligature stainless-steel gratings.
- Simplified full range of accessories:
- Security screws.
- Clamping rings.
- Spigot adaptors for various pipe diameter connections.
- Simplified range easy to navigate and specify.
- S-trap offers space saving – only requiring 180 mm cover hole.
- Saving cost.
- Cast iron gullies are robust and are grey epoxy coated.
- Spigot adaptors to connect to most pipe sizes and materials.
- Modular deep sump gullies that can configure to bell and brewery type traps.
General information
Color | Grey Silver |
Finish | Epoxy |
Material | Cast iron Stainless steel |
Shape | Circle Square Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | R11/5 Floor drains R11/315 Floor drains |
SKU Code | VX-F020 |
Specification data - Floor gullies
Classification data | |
Standard | To BS EN 1253-2. |
Properties | |
Body | |

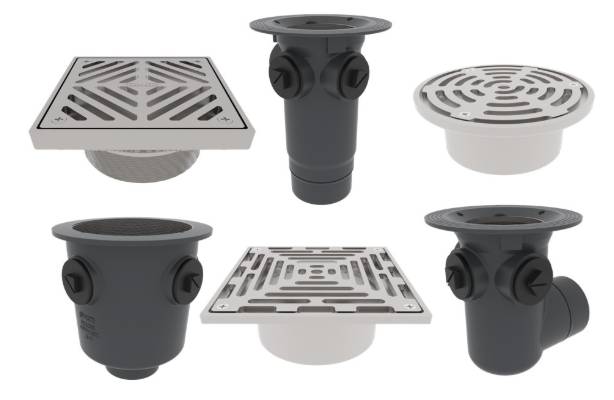

Configuration | Non-trapped floor gullies with medium sump (110 mm) - VX-F200. Non-trapped floor gullies with medium sump (4" BSP) - VX-F200. Non-trapped floor gullies with sumpless body - VX-F210. P-trapped floor gully - VX-F220. S-trapped floor gully - VXF230. Cast iron deep sump body with 3 x 2" BSP inlets - VX-F215. Guidance for specification option:
Bell-trapped body with 3 x 2" BSP inlets and 4" NPSM reducing collar - VX-F250. Guidance for specification option:
Brewery trap 3 x 2" BSP inlets with 300 mm square cast iron grating - VX-F240. Guidance for specification option:
Brewery trap 3 x 2" BSP inlets with 300 mm square cast iron grating - VX-F244. Guidance for specification option:
|
Material | Cast iron. |
Cover or grating | |
Cover or grating type | Flat grate. |
Material | Stainless steel. |
Finish | Standard finish. |
Outlet | Vertical one-part fixed. |
Load class (minimum) | K 3. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 97%. |
Integral accessories | Not required. Raising pieces - VX-F350. Guidance for specification option:
Clamping rings - VX-F205. Guidance for specification option:
ABS airtight bung - VX-F430. Guidance for specification option: Can be fitted to rodding eyes to make a double seal.
Screws and Allen key - VX-F420. Reducing ring to suit bell trap and deep sump - VX-F206. Guidance for specification option:
300 x 300 mm square grating in ductile iron (to suit VX-F215/250) - VX-F130. Guidance for specification option:
300 x 300 mm square grating in ductile iron (to suit bell trap)- VX-F250. Guidance for specification option:
|
Weight | 1.5 kg. |
Flow rate | 2.0 L/s. |
Connection | 150 mm NPSM. |
Sustainability data
Contains Red List materials | No |
Material | Cast iron Stainless steel |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 97 % |
Expected Life | 60 year |
