wedi Fundo Drains - shower waste drains with integral trap
Verified by manufacturer 1 month ago
Horizontal, DN50
Horizontal, DN50
BBA Agrément Certificate
Certificate type
EPD
Certificate type
European Technical Approval (ETA)
Certificate type
Special drains with odour traps and stainless steel grate covers.
Application
- Private residential construction.
- Public buildings and workplaces complying with DIN 18024-2.
- Accessible dwellings complying with DIN 18025-1 and DIN 18025-2.
Description

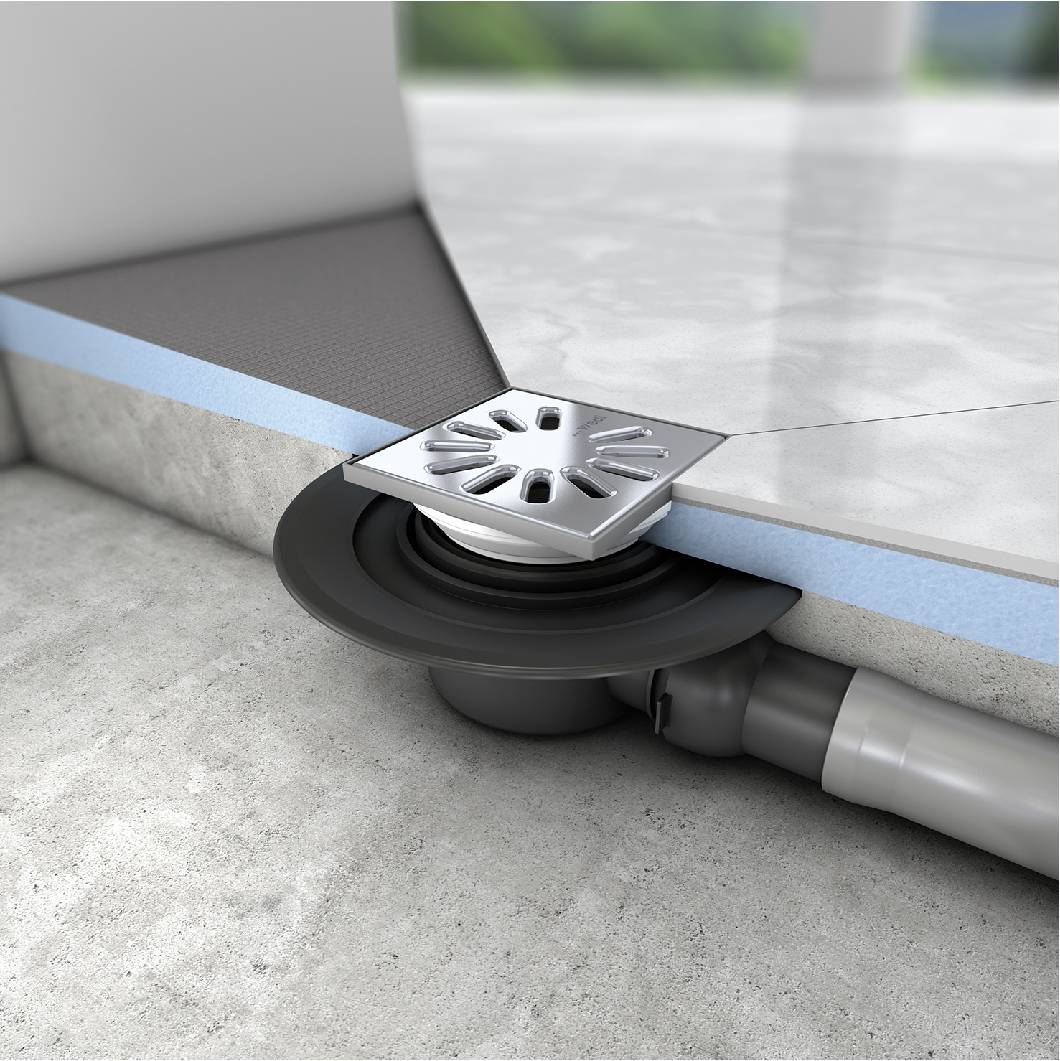

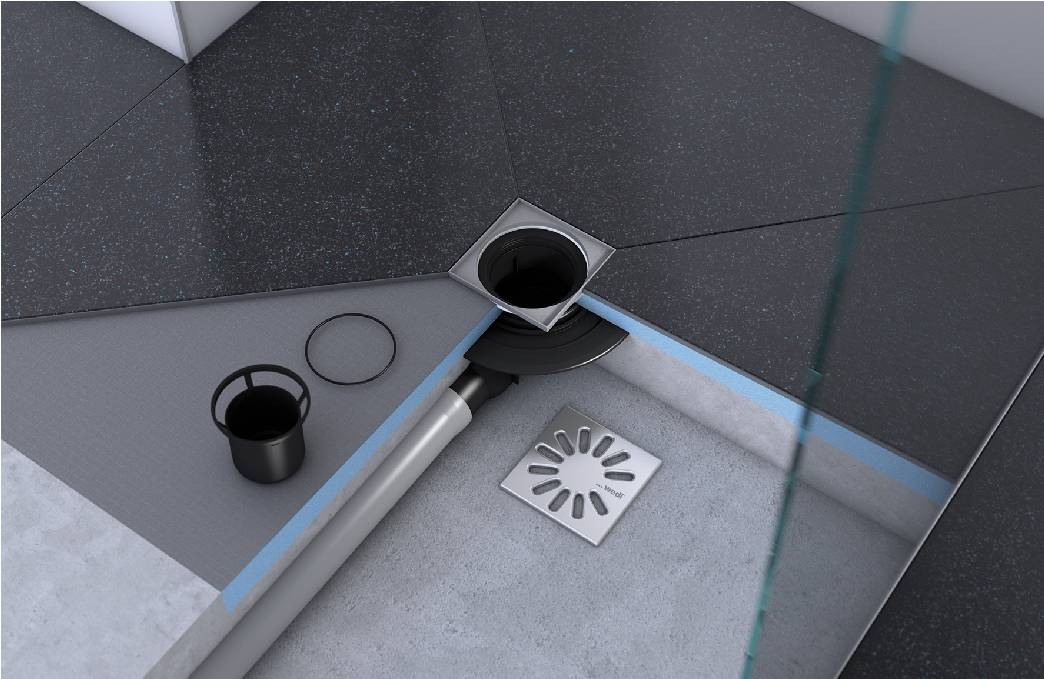

Special drain with integral odour trap and stainless steel grate cover for use in conjunction with a wedi Fundo Riolito, Riolito Neo, Riofino, RioLigno, Ligno, Borgo, Nautilo, Primo or Trollo shower floor elements.
General information
Color | Black |
Finish | Smooth |
Material | Acrylonitrile butadiene styrene (ABS) |
Shape | Circle |
Length | 131 mm 171 mm 193 mm 272.5 mm 146 mm |
Width | 116 mm 120 mm 162.5 mm 229 mm |
Height | 49 mm 57 mm 80 mm 82 mm 131 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/375 Shower units N13/40 Shower units |
Product range |
Specification data - Shower tray wastes
Form | Horizontal, DN50.Guidance for specification option: 0.80 L/s absorption capacity. |
Accessories | Not required. 320 Flexible Cement Based Adhesive. 520 Cement Based Waterproof Membrane. 610 Adhesive Sealant. Fundo Sealing Set. |
Water absorption | 0.80 L/s absorption capacity. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Third party certifications
Third party certifications
Literature
2019 Product Brochure
2022 wedi World of Systems brochure
Bathroom Inspiration brochure
Bathroom Advice Brochure
BBA certificate 14/5126 wedi Fundo Shower Elements
European Technical Approval ETA-13/0385
Fundo Top
How to build.. point drainage
wedi Fundo Ligno installation guide
wedi Fundo Ligno TDS
wedi Fundo Primo / Borgo / Trollo / Nautilo TDS
wedi Fundo Riolito / Riolito Neo / Riofino TDS
