X-Glaze Rooflight - Flat glass rooflights

Name: X-Glaze Rooflight - Flat glass rooflights
Brand: VELUX Commercial
SKU: qaqkwvCTdSGeQEBDJL3Cmu

Verified by manufacturer 1 month ago

VELUX Commercial

Glazing only units for direct fixing to builder's upstand.

Jump to:

+44 (0) 1592 778916 Website

Application

Flat roof 0–15°.

Description

Single, double or triple glazing units, available in glass or polycarbonate for direct fixing to a builder's upstand. Available in a range of shapes and colours.

Features and benefits:

Wide range of bespoke sizes from 600x600mm to 1800x2400mm (AOV limited to 1500x2400mm).

Glazing options (Developed U-Values shown) include;

Single skin polycarbonate with:

Double Glazed Glass Overall

Glass

Triple Glazed Glass (Argon filled) 0.6 W/m²K
Triple Glazed Glass (Low E inner and outer Air filled) 0.8 W/m²K
Double Glazed Glass (Low E, Argon Filled) 1.2 W/m²K
Double Glazed Glass (Low E, Air Filled) 1.4 W/m²K

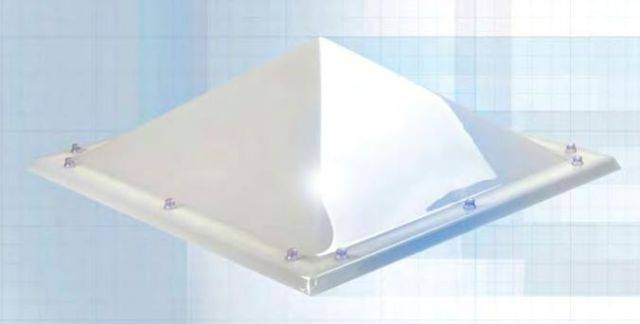

Polycarbonate Domes and Pyramids

Quad Skin Polycarbonate 1.4 W/m²K
Triple Skin Polycarbonate 1.8 W/m²K
Double Skin Polycarbonate 2.7 W/m²K
Single Skin Polycarbonate 5.3 W/m²K

Insulated Solid Lid

Insulated Solid Lid (double skin aluminium with 20mm insulation in-between) 1.4 W/m²K
Insulated Solid Lid (single skin aluminium with 16mm structured polycarbonate) 2.2 W/m²K

Features and benefits:

U-values are available from 0.6 W/m²K, dependent on variant specified. Consult manufacturer for details.
Non-fragile – polycarbonate rooflights achieve a Class B rating to ACR[M]001:2014, and glass options are available with a CWCT Class 0 or Class 2 specification.

As there are no integral upstands or kerbs, the usual range of ventilation, access and other options are not available - consult manufacturer for further details.

General information

Color	Bronze Guidance for specification option: Reduces light transmission and solar gain. Clear Guidance for specification option: Offers high light transmission and allows full vision of views or objects.
Finish	Powder-coated
Material	Polycarbonate Glass Aluminium
Shape	Square Rectangle Circle Hexagon
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Guidance for specification option: Available on request

Uniclass	Pr_30_59_72_31 Framed rooflightsPrimary
CAWS	L10/45 Rooflights L10/460 Rooflights

Specification data - Framed rooflights

Form	Circular. Guidance for specification option: Polycarbonate only. Dome. Guidance for specification option: Polycarbonate only. Flat. Guidance for specification option: Glass only. Hexagonal. Guidance for specification option: Polycarbonate only. Pyramid. Guidance for specification option: Polycarbonate only. Rectangular. Guidance for specification option: Polycarbonate only. Square. Guidance for specification option: Polycarbonate only.
Size	Guidance for specification option: 1800 x 2400 mm polycarbonate, 2000 x 1000 mm maximum single pane size. Larger sizes are available; panes will be joined together with a silicone joint. Consult manufacturer for details.
Product performance	-
Fire performance	-
Fire resistance	To BS 476, Part 7: Class 1, AA.
Reaction to fire	EN 13501-1: Class B-s1,d0. Guidance for specification option: Surface spread of flame: EN 13501-5 + A1: Broof (t4).
Whole window U-value	1.1–2.2 W/m²K.
Glazing or infill	-
Type	Polycarbonate. Guidance for specification option: Not available with Flat form. Glass. Guidance for specification option: Flat form only. Glass, single glazed. Guidance for specification option: Flat form only.
Construction	Single skin. Guidance for specification option: Polycarbonate only. Double skin. Guidance for specification option: Polycarbonate only. Triple skin. Guidance for specification option: Polycarbonate only. Double glazed. Guidance for specification option: Glass only. Single glazed. Guidance for specification option: Glass only.
Colour	Bronze. Guidance for specification option: Reduces light transmission and solar gain. Clear. Guidance for specification option: Offers high light transmission and allows full vision of views or objects. Diffused. Guidance for specification option: Offers high light transmission and prevents vision of views and objects. Opal. Guidance for specification option: Prevents vision of views and objects.
Coating	Manufacturer's standard.
Operation	-
Type	Fixed.

Accessories	None. Intruder grid – Code IG. Guidance for specification option: 3 mm diameter, fully welded, steel mesh in a 75 mm grid, which is fixed between the upstand and the roof structure. The grid will resist entry even when the rooflight has been compromised or removed.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Material	Polycarbonate Glass Aluminium
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	kg CO₂ eq/m² Self declared Guidance for specification option: Meets BRE EN 15804:2012+A1:2012
Recyclability	95%
