XtroLiner XO/STP Soffit Plus Insulation - Insulation

Name: XtroLiner XO/STP Soffit Plus Insulation - Insulation
Brand: Unilin Insulation UK Limited
SKU: mSDisZTvgQ7Td7VG79H5wW

Verified by manufacturer 3 months ago

Unilin Insulation UK Limited

Third party certifications:

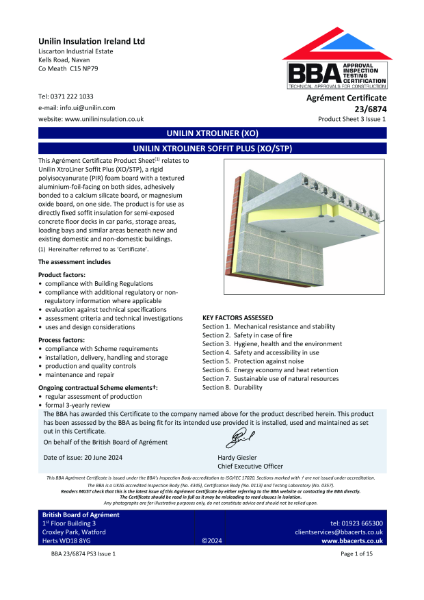

BBA Agrément Certificate
Certificate type

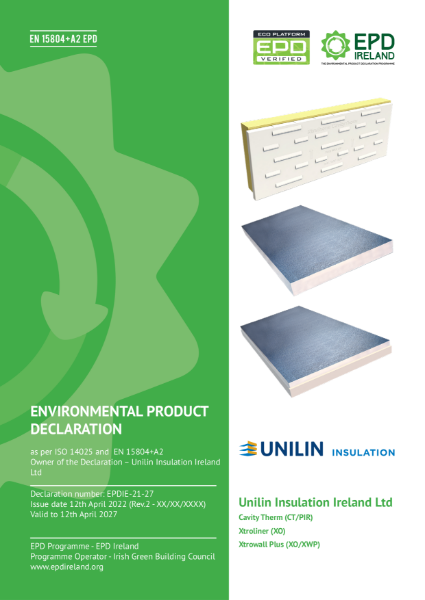

EPD
Certificate type

High performance polyisocyanurate (PIR) insulation for soffit application.

Jump to:

+44 (0)371 2221033 Website

Application

Structural ceiling applications in commercial and residential buildings.

Description

High performance polyisocyanurate (PIR) insulation for soffit application.

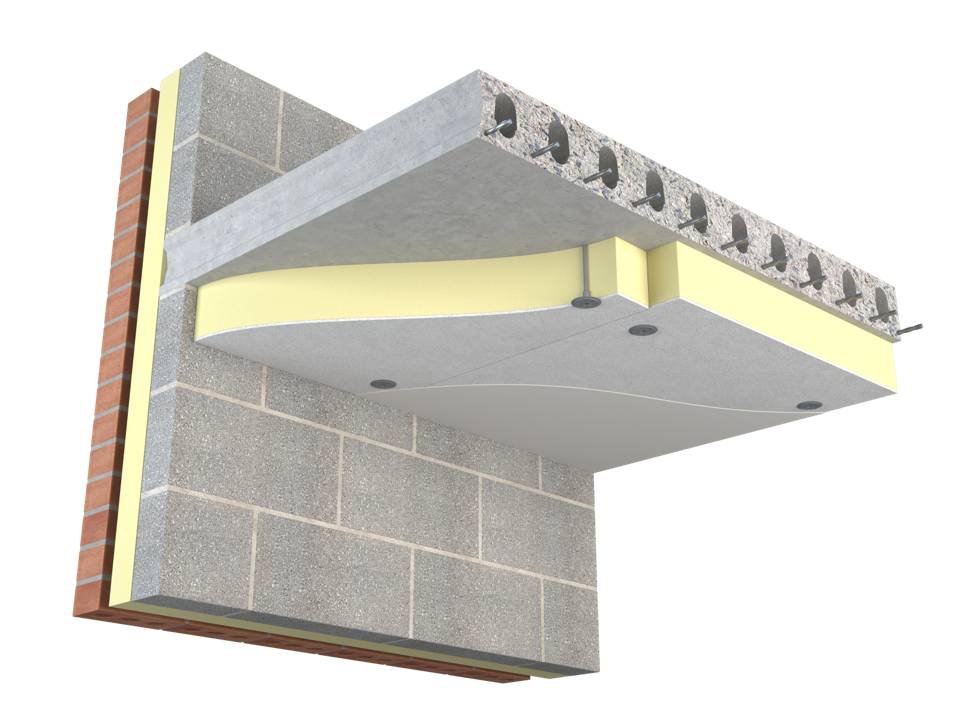

Unilin Insulation XtroLiner Soffit XO/STP provides effective thermal and fire performance solutions in structural ceiling applications in commercial and residential buildings.

The high performance modified PIR insulation board, with low emissivity textured aluminium foil facings, is bonded to impact resistant 6 mm magnesium oxide board which offers a secure finish for ease of maintenance to which a decorative finish may be applied.

General information

Color	Yellow
Finish	Foil
Material	Polyisocyanurate (PIR)
Shape	Rectangle
Length	2400 mm
Width	1200 mm
Height	56 mm 66 mm 81 mm 86 mm 106 mm 126 mm Show more

Uniclass	Pr_25_71_63_66 Polyisocyanurate (PIR) foam boardsPrimary
CAWS	P10/185 Soffit insulation P10/217 Insulation slabs fixed to backing wall

Specification data - Polyisocyanurate (PIR) foam boards

Standard	To BS EN 13165.
Third-party certification	BBA Certificate No. 23/6874.
Fire performance	Euroclass B-s1, d0.
Thermal conductivity (maximum)	0.021 W/mK.
Compressive strength at 10% deformation	>120 kPa.
Cross section	Rectangular.
Thickness (nominal)	56 mm. 66 mm. 81 mm. 106 mm. 126 mm. Manufacturer guidance Includes 6 mm magnesium oxide board.
Face size (length x width)	2400 x 1200 mm.
Density	32 kg/m³.
Recycled content	0%.
Facing	6 mm magnesium oxide board and textured foil facing.
Edges	Square.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom Guidance for specification option: UK and Ireland.
Country of product manufacture	United Kingdom Guidance for specification option: UK and Ireland.
Material	Polyisocyanurate (PIR)
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	11.2 kg CO₂ eq/m²
Recyclability	0
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
