2500 Series (Wood Floor) Access Cover
Verified by manufacturer 1 month ago
Stainless steel, single cover floor access covers for pedestrian traffic, wheeled trolleys, sack trucks, etc. on wooden surfaces.
Application
Suitable for interior and exterior floors. Commercial buildings, educational institutions, civic and public buildings subject to pedestrian footfall traffic where permanent access to underfloor facilities and services is required.
Description

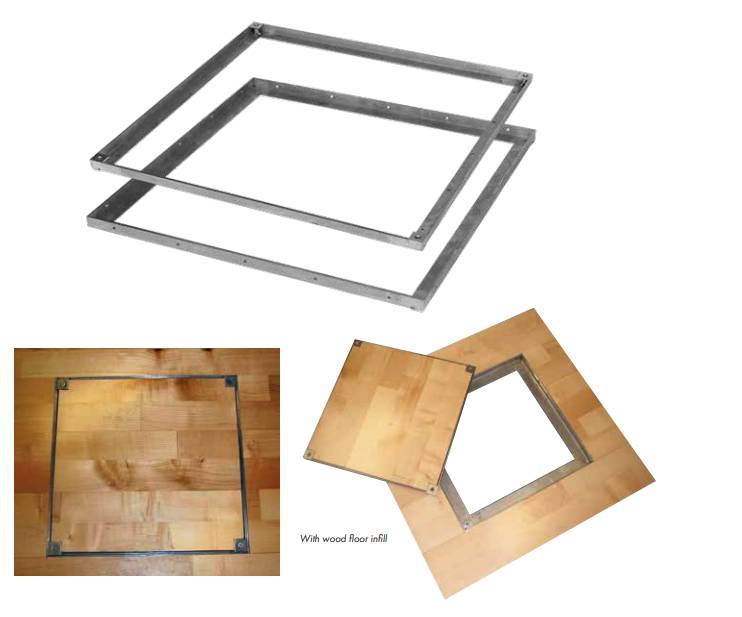

The 2500 Series Floor Access Covers are suitable for all types of timber floors – up to 22 mm solid hardwood floors, timber strip and heavy-duty laminate flooring to enable permanent, safe access to services concealed underneath.
The 2500 Series is a Stainless Steel Single Access Cover Trim available for use in wood flooring areas. Manufactured in the UK, all covers are made to an exact specification.
Features and benefits:
- Made to exact specification between stated maximum and minimum sizes, with no time or cost constraint.
- Quick and easy to install ensuring minimum disruption.
- Fits within the thickness of a standard timber floor, removing the need to cut rebates into whatever is underneath the timber flooring.
- Provides easy, permanent access to underfloor services using lifting keys.
- Screwed sideways into the floor to allow movement with a floating timber floor.
General information
Color | Brown |
Finish | Guidance for specification option: Wood floor. |
Material | Stainless steel |
Shape | Square Rectangle |
Length | Bespoke Guidance for specification option: Minimum-Maximum size: 150-900 mm. |
Width | Bespoke Guidance for specification option: Minimum-Maximum size: 150-900 mm. |
Height | 25 mm |
Uniclass | |
CAWS | P30/301 Access covers, manhole tops and frames P31/370 Access covers/ gratings R12/471 Access covers and frames |
Specification data - Access covers, gratings and frames
Standards | To BS EN ISO 9001. |
Configuration | Wood floor access cover. |
Finish | Heavy duty timber floors: Junckers solid hardwood floors, timber strip flooring or heavy-duty laminate flooring.Guidance for specification option: All types of timber floors – up to 22 mm solid hardwood floors, timber strip flooring, heavy-duty laminate flooring. |
Clear opening (minimum) | 100 mm. |
Load class (minimum) | Guidance for specification option: Manufactured from stainless steel, fitted with stainless steel securing bolts. |
Frame or support | Guidance for specification option: Clear opening size plus 70 mm. |
Integral accessories | None.Lifting points.Guidance for specification option: Barrel only. Sets of combined lifting/ securing keys. |
Cover and frame material | Stainless steel, grade 1.4301 (304). Guidance for specification option: Standard. Stainless steel, grade 1.4401 (316). |
Depth | 25 mm. |
Weight | 16 kg/m² (approximately). |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Stainless steel |
Literature
2500 Series Wood Floor Access Cover Trim
