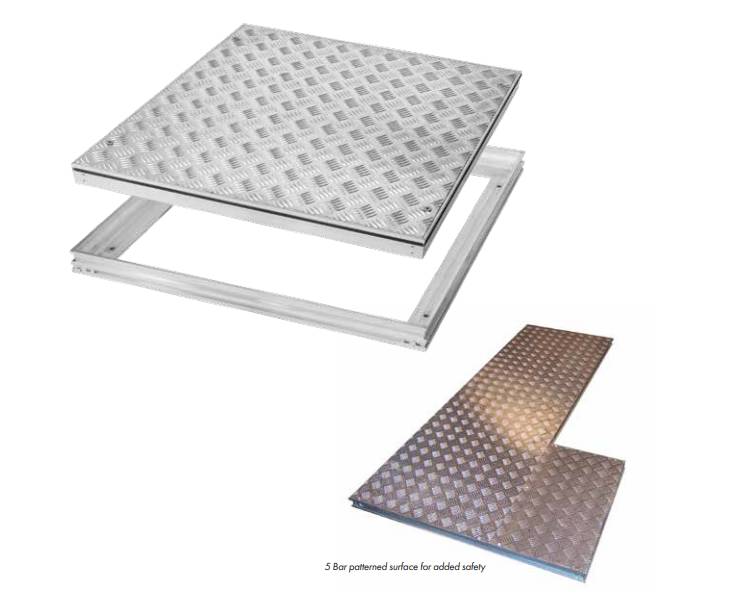

5 Bar Series tread plates (Aluminium) Single Cover
Verified by manufacturer 1 month ago
Aluminium light duty, tread plate access hatch cover for pedestrian traffic, wheeled trolleys, sack trucks, etc.
Application
Suitable for interior and exterior flooring with light pedestrian traffic.
Description
Aluminium, single tread plate covers for light pedestrian traffic (including wheeled trolleys, sack trucks, etc.) on all types of flooring.
Features and benefits:
- Lightweight.
- Covers can be fitted quickly and unobtrusively into all types of hard floor finish: ceramic tiles, marble, terrazzo, resin or parquet.
- Double sealed.
- Anti-slip treadplate pattern.
- Access hatches can be linked together to provide continuous access to ducts.
- Quick and easy to install, ensuring minimum disruption.
- Manufactured in accordance with BS EN ISO 9001.
General information
Material | Aluminium |
Shape | Square |
Length | 1082 mm |
Width | 1082 mm |
Height | 50 mm |
Uniclass | |
CAWS | P30/301 Access covers, manhole tops and frames P31/370 Access covers/ gratings R12/471 Access covers and frames |
Specification data - Access covers, gratings and frames
Standards | To BS EN ISO 9001. |
Configuration | Single cover. |
Clear opening (minimum) | Guidance for specification option: Clear opening size plus 82 mm. |
Frame or support | Guidance for specification option: Clear opening size plus 82 mm. Aluminium outer frame and five bar chequer-plate lid with stainless steel securing bolts. |
Product Reference | 5 Bar Series tread plates (Aluminium) Single Cover |
Depth | 50 mm. |
Sealing | Guidance for specification option: Double sealed with socket head securing bolts complete with all necessary removable sealing cross-members and support beams (where necessary). |
Weight | 18 kg/m². |
Sustainability data
Material | Aluminium |
Literature
5 Bar Series Tread Plate Access Cover
