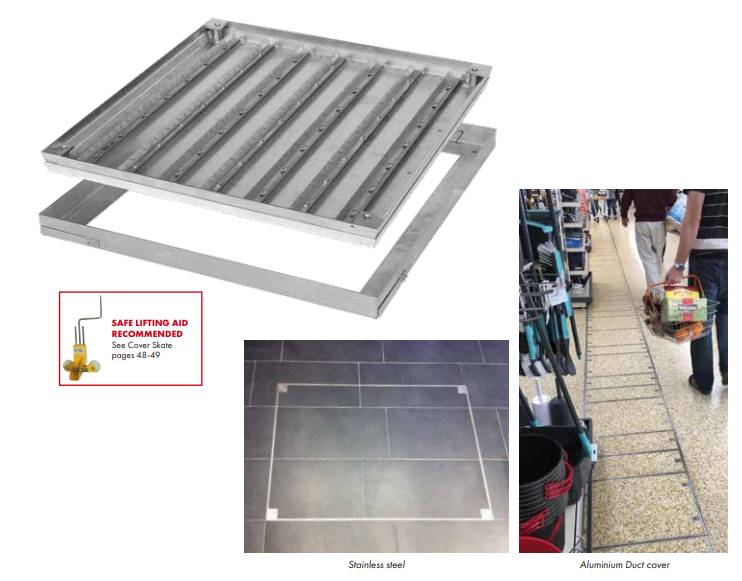

Aluminium light duty floor access cover for pedestrian traffic, wheeled trolleys, sack trucks, etc.
Suitable for interior and exterior hard floors with pedestrian traffic.
Aluminium, duct run floor access covers for pedestrian traffic (including wheeled trolleys, sack trucks, etc.) on hard floor surfaces. Includes inset lifting points as standard.
Features and benefits:
Color | Silver Grey Black Green White |
Finish | Galvanized |
Material | Aluminium |
Shape | Square |
Uniclass | |
CAWS | P30/301 Access covers, manhole tops and frames P31/370 Access covers/ gratings R12/471 Access covers and frames |
Standards | To BS EN ISO 9001. |
Configuration | Aluminium duct. |
Finish | Galvanized steel.Stainless steel. |
Clear opening (minimum) | 100 mm.Guidance for specification option: Overall frame size = clear opening + 120 mm. Clear opening: Duct: 100—600 mm (min-max). |
Frame or support | Aluminium cover and frame with steel baseplate and reinforcement.Guidance for specification option: Galvanized carbon steel support beams and pockets (where necessary). |
Integral accessories | None.Sets of combined lifting/ securing keys.Cover skate lifting device.Recessed support beam pockets.Surface mounted support beam pockets. |
Base plate | Galvanized steel. Guidance for specification option: Standard. Stainless steel, grade 1.4301 (304). Stainless steel, grade 1.4401 (316). |
Show edge | Aluminium. Guidance for specification option: Standard, matching lifting blocks. Brass. Guidance for specification option: Matching lifting blocks. Colouredge high impact PVC, Black. Guidance for specification option: Aluminium matching lifting blocks. Colouredge high impact PVC, Forest green. Guidance for specification option: Aluminium matching lifting blocks. Colouredge high impact PVC, Sandstone. Guidance for specification option: Aluminium matching lifting blocks. |
Sealing | Double sealed with socket head securing bolts. Unsealed with blanking bolts. |
FireRating | None. |
Depth | 50 mm. |
Material | Aluminium |
