B10&B20 - Balustrade System
Verified by manufacturer 2 days ago
A stair and balcony balustrade system and wall-mounted stair handrail.
Application
Suitable for privacy screens on balconies and terraces, internal balustrades to building voids, stairs, and external and internal ramps.
Description

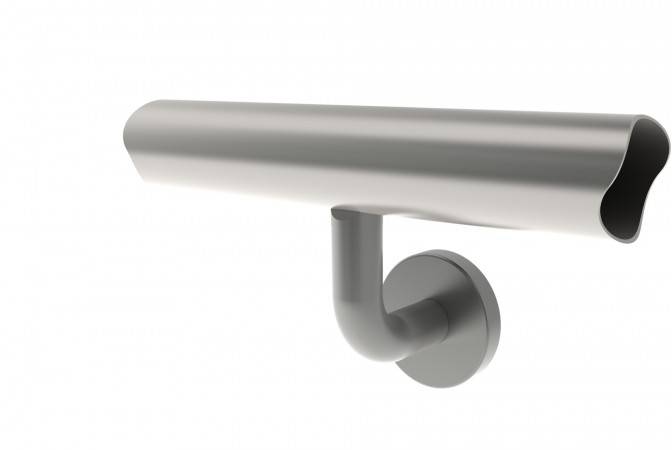

B20 is a stair and balcony balustrade system with many finishes and infill panel options. B10 is a wall-mounted handrail, designed to coordinate with the balustrade system.
B20 stair and balcony balustrades use posts for structural integrity. A variety of options are suited to different applications. Solid infills are used where children may be present, such as in high-rise apartments and public areas. Wire or mid-rail infills are often selected for commercial or office environments.
Features and benefits:
- Various infill panels are available including glass, wire, rails, and perforated metal.
- Welded joints for finish and strength.
- Choice of post and handrail finishes from powder-coated steel to antimicrobial Vetobac.
- Bolt-through glass clamps to prevent glass slippage.
General information
Color | Other |
Finish | Powder-coated |
Material | Stainless steel Glass Steel |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L30/70 Proprietary handrails L30/55 Proprietary balustrades L37/160 Balustrade systems L37/150 Handrail systems L30/580 Proprietary handrails L30/560 Proprietary balustrades |
Specification data - Balustrade and guarding systems
System manufacturer | BA Systems. |
Uprights | Stainless steel.Steel, powder-coated. |

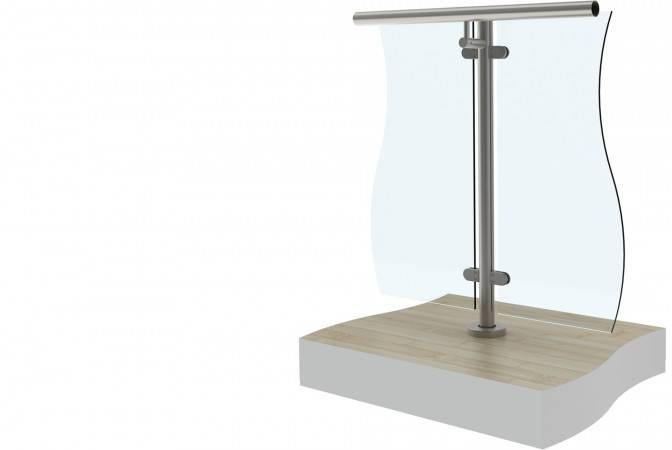

Infills | Glass inline.Guidance for specification option: 10 mm or 11.5 mm thick clear toughened and laminated glass infills mounted in line with the balustrade on clamp fixings. Opaque privacy and low-iron options. Insert requirements. Glass offset.Guidance for specification option: 10 mm or 11.5 mm thick clear toughened and laminated glass infills mounted with the balustrade on clamp fixings. Opaque privacy and low-iron options. Insert requirements. Wire.Guidance for specification option: Specified quantity of horizontal wires mounted in line with the balustrade for office or commercial environments. (Not suitable to protect against a drop in level where young children may be present). Insert requirements. Mid rails.Guidance for specification option: Specified number of 12–25 mm diameter horizontal mid rails offset or inline mounted to the balustrade or a single 50 mm diameter horizontal mid rail. (Not suitable to protect against a drop in level where young children may be present). Insert requirements. Perforated.Guidance for specification option: Perforated infills are class-A rated and non-combustible. Perforate shapes, dimensions and sizes can be manufactured out of aluminium panels to bespoke requirements. Perforated infills clamped to vertical posts. Insert requirements or refer to a drawing. No infill.Guidance for specification option: Handrails that are freestanding and require no infills. Typically these are used where handrails cannot be supported off walls on stair landings adjacent glass facades and for external ramps that do not protect drops in height levels. Vertical bar.Guidance for specification option: 12 x 12 mm vertical bar infills mounted in line with the balustrade post. This option can be provided to any powder coat colour reference. This system can be used on stairs, balconies or terraces. Insert requirements. |
Rails | |
Handrails | Stainless steel handrails, Grade 304.Guidance for specification option: Internal grade. Stainless steel handrails, Grade 316.Guidance for specification option: External grade. Steel handrails, powder-coated.Guidance for specification option: Available in a range of colour options. Consult manufacturer and insert requirements. VBA99 handrails.Guidance for specification option: A hygienic copper-alloy handrail that can be utilised for a variety of frequently used touch-points where bacteria would normally spread. |
Fixing to parent structure | Surface mounted.Guidance for specification option: Balustrade posts surface mounted to concrete or steel substrates with plates fixed in four points or over a pre-fixed spigot then concealed with fixing cover roses. Side mounted.Guidance for specification option: Balustrade posts side mounted to concrete or steel substrates with a two point spacer and bolt system. |
Handrail configuration | B20 contemporary offset. Guidance for specification option: Continuous handrail mounted offset to the balustrade posts. B20 contemporary inline. Guidance for specification option: Continuous handrail mounted in line with the balustrade. B10 contemporary wall mount. Guidance for specification option: 50 mm and 42 mm diameter round handrails mounted on concealed fix contemporary handrail brackets, also available in square handrail profile. Insert requirements. B10 surface mount. Guidance for specification option: 50 mm or 42 mm diameter round handrails surface mounted on circular handrail brackets with cover roses to the tops of parapet walls, also available in square handrail profile. Insert requirements. B10 wall mount. Guidance for specification option: 50 mm or 42 mm diameter round handrails mounted on circular handrail brackets with fixing cover roses, also available in square handrail profile. Insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Stainless steel Glass Steel |
Literature
BA Systems - B10 & B20 Interactive Product Guide
