J50 - Balustrade System
Verified by manufacturer 2 days ago
A vertical bar balustrade system for Juliette and inset balconies.
Application
Suitable for Juliette and inset balconies.
Description
The J50 system offers a cost-effective and streamlined installation for Juliette and inset balconies.
Features and benefits:
- Modular bracket installed with the brickwork, allowing for faster and seamless installation times.
- Designed to fully meet structural loading requirements of BS 6180.
General information
Color | Other |
Finish | Powder-coated |
Material | Aluminium |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L30/55 Proprietary balustrades L30/560 Proprietary balustrades |
Specification data - Balustrade and guarding systems
System manufacturer | BA Systems. |
Infills | Aluminum vertical flat bars, powder-coated.Guidance for specification option: 50 x 12 mm. |
Fixing to parent structure | Modular bracket built into brickwork.Guidance for specification option: The J50 system is hooked over the protruding stud fixings. The system is adjusted to suit the tolerances in all three directions using a dome nut and lock nut on the studs. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Aluminium |
Recyclability | 100% Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature

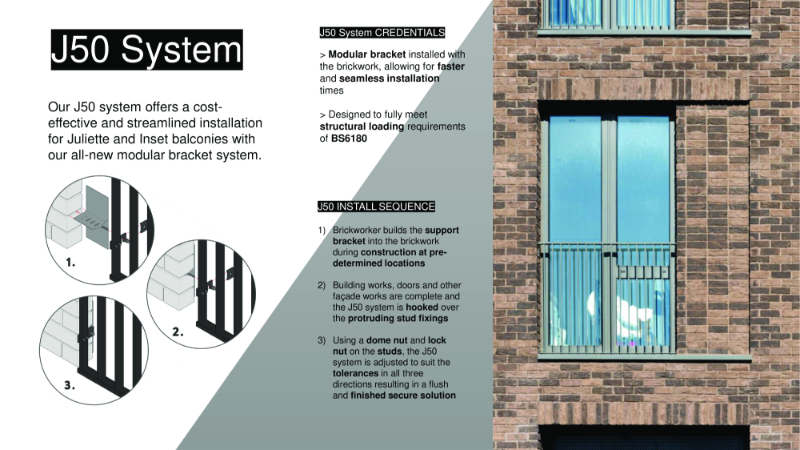

BA Systems - J50 Juliette Balcony System
