B50 - Balustrade System

Verified by manufacturer 23 days ago

BA Systems

A vertical bar balustrade system.

Jump to:
+44 (0)1603 722330 Website

Application

Suitable for balconies and terraces.

Description

B50 is a modular, aluminium flat bar balustrade for balconies and terraces. The noncombustible materials are suitable for residential and commercial developments. B50 is specifically designed to reduce interaction with surrounding trades.

Features and benefits:

  • Weld-free aluminium extruded parts are mechanically assembled with concealed fixings.
  • Non-combustible, aluminium materials and powder coatings specified can be provided with relevant A2 classification certification.
  • Strength tested to meet a 0.74 kN/m loading; suitable for all residential balconies and terraces.
  • Easy waterproofing via the B50 systems flat and continuous rear profile edge.
  • Powder-coated or anodized.
  • Fascia side mount - Each vertical bar is mechanically fixed to a fascia plate; providing a complete edge solution.
  • Post surface mount - Surface fixed to a concrete or steel substrate. Pre-assembled flat bar panels are fixed to a structural post or mounted into a base channel.
  • Channel surface mount - Allowing for a continuous detail for waterproof integration, bars are surface fixed into the channel.

General information

Color

Other

Finish

Powder-coated

Anodized

Material

Aluminium

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

Specification data - Balustrade and guarding systems

System manufacturer

BA Systems.

Infills

Aluminium vertical flat bars, powder-coated.
Aluminium vertical flat bars, anodized.

Manufacturer guidance

50 x 12 mm or 70 x 12 mm.

Rails

-

Handrails

Aluminium handrails, powder-coated.
Aluminium handrails, anodized.

Fixing to parent structure

Fascia side mount.

Guidance for specification option:

Each vertical bar is mechanically fixed to a fascia plate.

Post surface mount.

Guidance for specification option:

Surface fixed to a concrete or steel substrate. Pre-assembled flat bar panels are fixed to a structural post or mounted into a base channel.

Channel surface mount.

Guidance for specification option:

Allowing for a continuous detail for waterproof integration, bars are surface-fixed into the channel.

Fire resistance

A2-s1, d0.

Load

0.74 kN/m.

1.5 kN/m.

3 kN/m.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Aluminium

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Literature

BA Systems - B50 Interactive Product Guide

BA Systems - B50 Interactive Product Guide

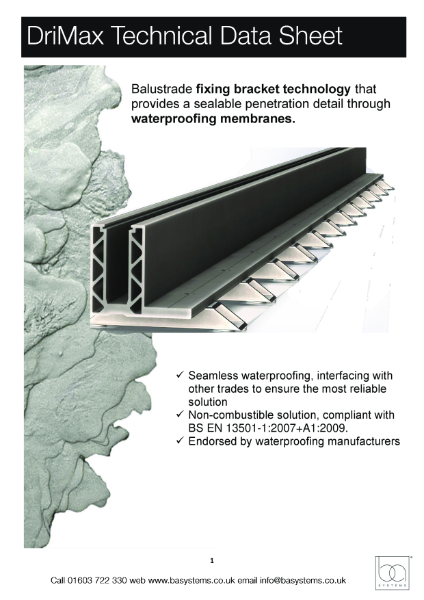

BA Systems - DriMax Technical Data Sheet
