E-50TB LADDER ACCESS HATCH
Verified by manufacturer 1 month ago
Single leaf roof access hatch for personnel access using fixed vertical or retractable ladder.
Application
Roof access hatch, suitable for one-handed operation to open or close.
Description
Ladder access hatch designed for one-handed operation to open or close.
Features and benefits:
- Thermally broken cover and frame.
- Engineered with compression spring operators.
- Overlapping cover design.
- Fully welded corners on cover and curb.
- Constructed with corrosion resistant materials.
- Heavy gauge construction, curb features the Bil-Clip® flashing system.
General information
Finish | Mill Powder-coated Guidance for specification option: Polyester powder coated, RAL. |
Material | Aluminium |
Shape | Square |
Length | 915 mm |
Width | 915 mm |
Warranty description | Five year Guidance for specification option: Manufacturer's warranty. |
Uniclass | |
CAWS | L20/60 Doors L20/630 Hatches |
Product range |
Specification data - Roof hatches
Format | External. |
Door | |
Orientation | Horizontal. |
Material | 2.3 mm aluminium, 75 mm polyisocyanurate insulation. |
Operation | |
Mode | Manual. Compression springs located within inner and outer tube. |
Accessories | None.Curb modifications.Handrails.Locks.Motorized operation.Special paint finish, colour ___.Stainless steel hardware.Ventilation louvres. |
Dimensions | 915 x 915 mm. |
Weight | 63 kg. |
Sustainability data
Material | Aluminium |
Literature

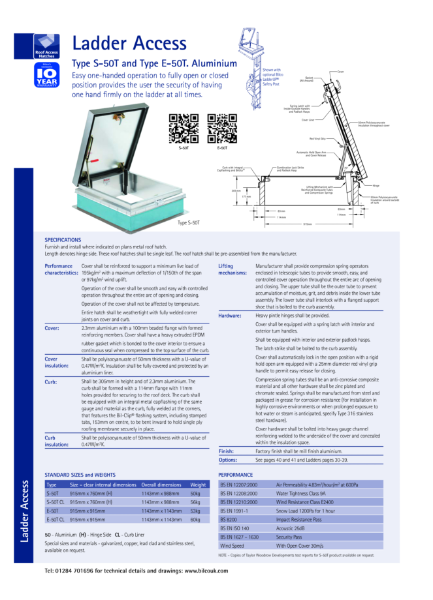

Ladder Access Roof Hatch
