VersaMount® REPLACEMENT ACCESS HATCH
Verified by manufacturer 1 month ago
Single leaf roof hatch.
Application
Suitable for new construction, retrofit and replacement applications.
Description
The VersaMount roof hatch is suitable for refurbishment projects where a weatherproof upstand is existing. Easy to fit anchor clip system and versatile frame design helps complete the job efficiently.
Features and benefits:
- Weathertight performance.
- Years of maintenance-free service.
- Designed to expand installation options.
General information
Material | Aluminium Polyisocyanurate |
Shape | Rectangle |
Length | 915 mm |
Width | 760 mm |
Warranty description | Five year |
Uniclass | |
CAWS | H67/365 Roof hatches L20/630 Hatches |
Specification data - Roof hatches
Format | External. |
Door | |
Orientation | Horizontal. |
Material | Aluminium. |
Operation | |
Mode | Manual. Compression springs located within inner and outer tube. |
Accessories | Handrails.Locks.Motorized operation.Special paint finish.Colour.Stainless steel hardware.Ventilation louvres.Curb modifications.None. |
Dimensions | Internal: 915 x 760 mm; Overall: 1195 x 1040 mm. |
Weight | 50 kg. |
Hold-open angle | 87°. |
Curb | 140 mm in height and of 2.3 mm aluminium. The curb is formed with a 117 mm flange and a 38 mm apron, fully welded at corners, with 75 mm polyisocyanurate insulation. Stainless steel anchor clips are included. Guidance for specification option: Recommended maximum upstand width is 110 mm. |
Sustainability data
Material | Aluminium Polyisocyanurate |
Literature

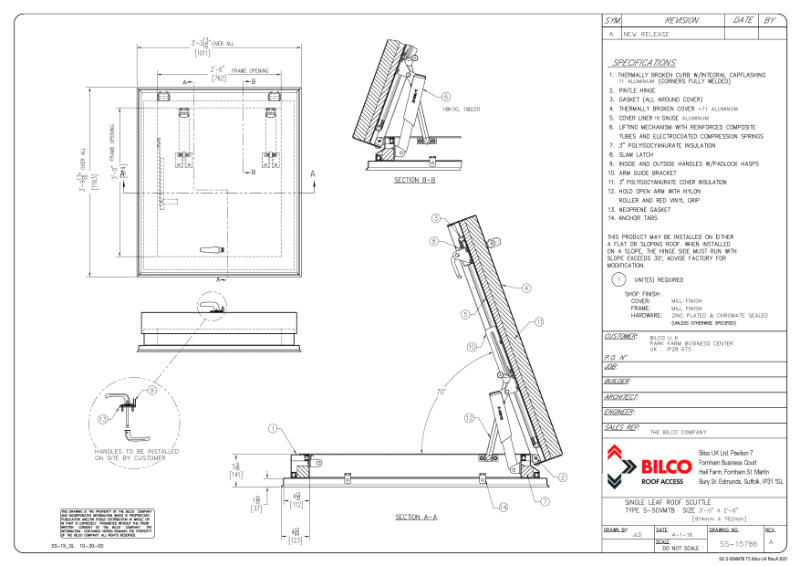

SUBMITTAL DRAWING VersaMount
