SSY-50TB SERVICE STAIR ACCESS HATCH
Verified by manufacturer 1 month ago
Single leaf roof access hatch for personnel access using full size service stair.
Application
For service stair installations where frequent use may be expected.
Description
A service stair access hatch which permits easier movement of maintenance personnel, tools and equipment with the added comfort of a full size stairway.
Features and benefits:
- Thermally broken cover and frame, engineered with compression spring operators.
- Overlapping cover design.
- Fully welded corners on cover and curb.
- Constructed with corrosion resistant materials, heavy gauge construction.
- Curb features the Bil-Clip® flashing system.
General information
Finish | Mill Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | 3360 mm |
Width | 760 mm |
Warranty description | Five year Guidance for specification option: Manufacturer's warranty. |
Uniclass | |
CAWS | L20/60 Doors L20/630 Hatches |
Product range |
Specification data - Roof hatches
Door | |
Material | 2.3 mm aluminium, 75 mm polyisocyanurate insulation. |
Operation | |
Mode | Manual. Compression springs located within inner and outer tube. |
Other requirements | None. Curb modifications. Handrails. Locks. Motorized operation. |
Insulation | 75 mm polyisocyanurate to curb. |
Dimensions | 760 x 3360 mm. |
Weight | 176 kg. |
Sustainability data
Material | Aluminium |
Literature

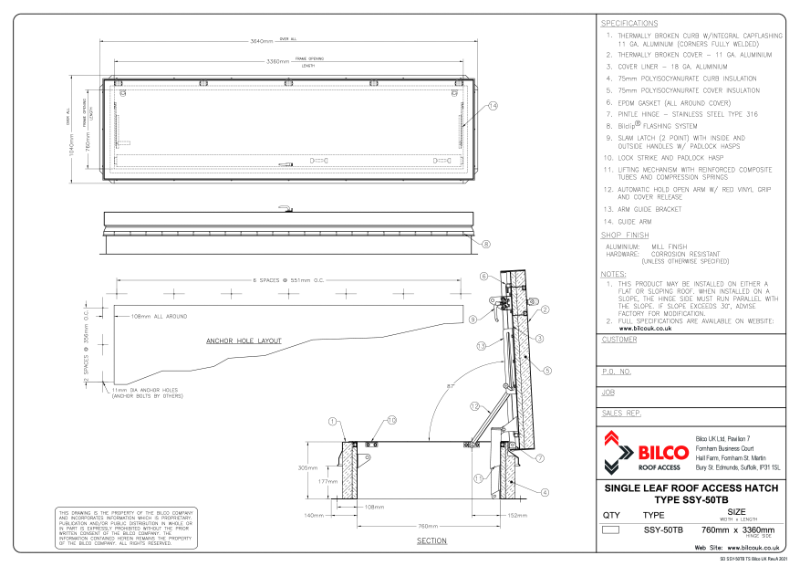

SUBMITTAL DRAWINGS SSY-50TB
