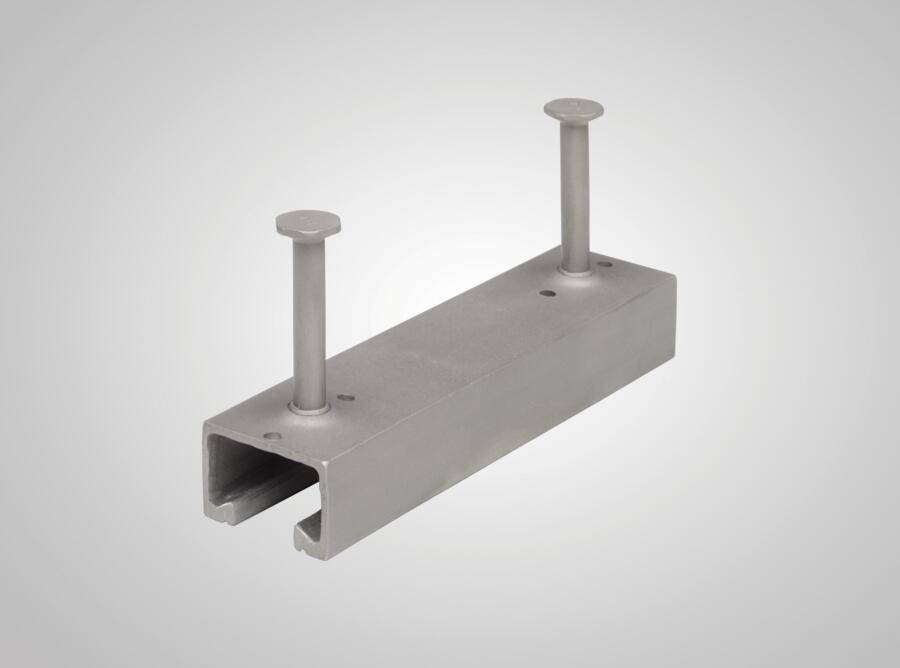

Halfen HTA-CE Cast-in Channels
Verified by manufacturer 4 days ago
Hot-Dip Galvanized Steel Channels
Hot-Dip Galvanized Steel Channels
European Technical Approval (ETA)
Certificate type
EPD
Certificate type
Halfen channel is synonymous with permanent versatile fixings to concrete structures.
Application
HALFEN HTA-CE:
Application: fixing of all types of components.
HALFEN HTA-CE-CS:
Application: Curved channels are planned and produced for specific projects and produced, e.g. for tunnels, utility pipes, sewage treatment plants or other curved structures.
- Traffic infrastructure: tunnels, bridges, roads, airports and railway stations.
- Public and residential buildings: stadiums, sport and leisure, trade and utility buildings, office and residential towers or detached houses.
- General infrastructure: power plants, energy and infrastructure, energy storage or transport, water and sewage projects.
- Industry: production plants, automotive, agriculture.
Description
In addition to their excellent adjustability, Halfen Anchor channels save considerable installation time. The result — faster construction and therefore increased cost savings.
HALFEN HTA-CE
Features and benefits:
- Permanently adjustable fixing solution.
- Cold and hot-rolled channel profiles.
- Hot-rolled dynamically loadable channel profiles.
- Suitable for use in cracked and non-cracked concrete.
HALFEN HTA-CE-CS
Features and benefits:
- Permanently adjustable fixing solution.
- Maximum economic efficiency for row installation.
- Cold and hot-rolled channel profile.
- Hot-rolled dynamic loaded channel profiles.
- Suitable for use in cracked and non-cracked concrete.
General information
Color | Silver |
Finish | Galvanized Stainless steel |
Material | Steel |
Shape | Other |
Length | Bespoke |
Uniclass | |
CAWS | E42/340 Channels and slots E42/340 Channels and slots |
SKU Code | HALFEN HTA-CE, HALFEN HTA-CE-CS |
Specification data - Carbon steel cast-in channels
Classification data | |
Material | |
Standard | To BS EN 10025-2. |
Designation | 1.0038. 1.0044. |
Finish | Hot-dip galvanized. |
Anchors | Studs welded to back of section. |
Bolts | |
Format | T-head. |
Steel grade | 4.6, to BS EN ISO 898-1. 8.8, to BS EN ISO 898-1. |
Thread diameter | M6. M8. M10. M12. M16. M20. M24. M27. M30. |
Sustainability data
Manufacturing plant location | |
Material | Steel |
Product certifications
Product certifications
European Technical Approval (ETA)
Halfen HTA-CE Cast-in Channels ETA
EPD
Environmental Product Declaration - Halfen Cast-in Channel HTA-CE and HZA
Literature
Literature type
Halfen Cast-in Channels Technical Brochure
Halfen HTA-CE Cast-in Channels Installation Guide
