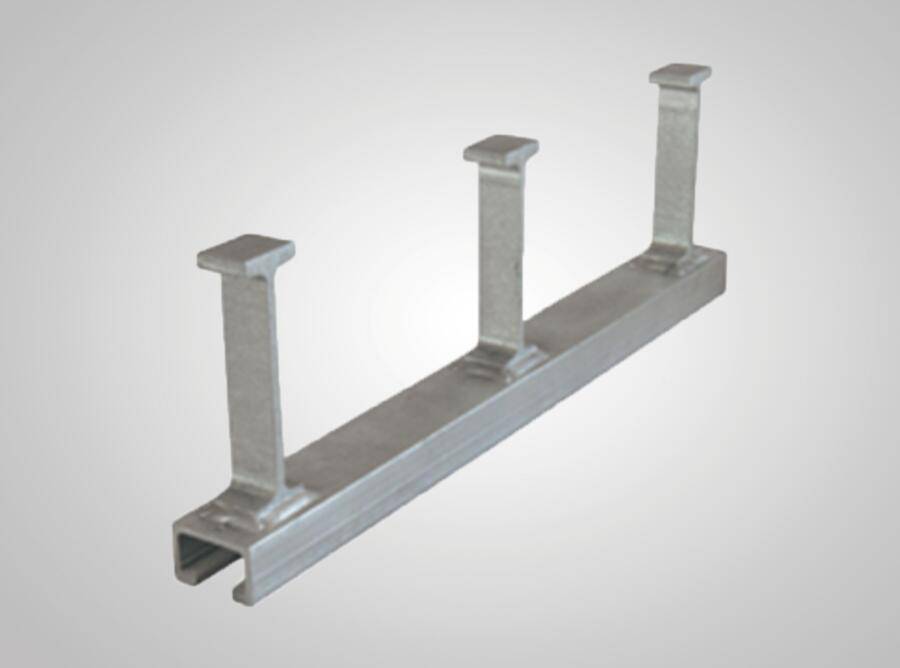

Halfen HZA-PS Cast-in Channels

Name: Halfen HZA-PS Cast-in Channels
Brand: Leviat
SKU: hnMyok16nYLEt2fE5gGW4S

Verified by manufacturer 4 days ago

Hot-Dip Galvanized Steel Channels

Leviat

Product certifications:

European Technical Approval (ETA)
Certificate type

Halfen HZA-PS Channels are suitable for applications in safety-relevant areas of nuclear power plants and other nuclear facilities.

Jump to:

+44 (0) 114 275 5224 Website

Application

Nuclear power plants and nuclear facilities.
Traffic infrastructure: tunnels, bridges, roads, airports and railway stations.
Public and residential buildings: stadiums, sport and leisure, trade and utility buildings, office and residential towers or detached houses.
General infrastructure: power plants, energy and infrastructure, energy storage or transport, water and sewage projects.
Industry: production plants, automotive, agriculture.

Description

Halfen HZA-PS Channels are also suitable for applications in safety-relevant areas of nuclear power plants and other nuclear facilities. Certified according to European Technical Assessment ETA-17/0728.

Suitable for applications where high loads in the longitudinal direction of the channel must also be considered. The special toothing/serration guarantees a positive load transfer into the channel.

In addition, the channels can also reliably absorb fatigue-related vibrations and therefore meet all the requirements for reliable fixing for example of crane runways or of elevator guide rails.

Features and benefits:

Permanently adjustable fixing solution.
Cost-effective installation using only simple tools.
Effective pre-planning can reduce construction time.
Health-friendly: no dust, no noise, no vibrations.
No damage to the main reinforcement.
Approved for building components with fire protection requirements.
Suitable for installation in concrete compression and tension zones.

General information

Color	Silver
Finish	Galvanized Stainless steel
Material	Steel
Shape	Other
Length	Bespoke

Uniclass	Pr_20_85_84_11 Carbon steel cast-in channelsPrimary Pr_20_85_84_84 Stainless steel cast-in channels
CAWS	E42/340 Channels and slots E42/340 Channels and slots

SKU Code	Halfen HZA-PS

Specification data - Carbon steel cast-in channels

Classification data
Material	-
Standard	To BS EN 10025-2.
Designation	1.0038. 1.0044.
Finish	Hot-dip galvanized.
Anchors	Studs welded to back of section.
Bolts	-
Format	T-head.
Steel grade	4.6, to BS EN ISO 898-1. 8.8, to BS EN ISO 898-1.
Thread diameter	M12. M16. M20. M24.
