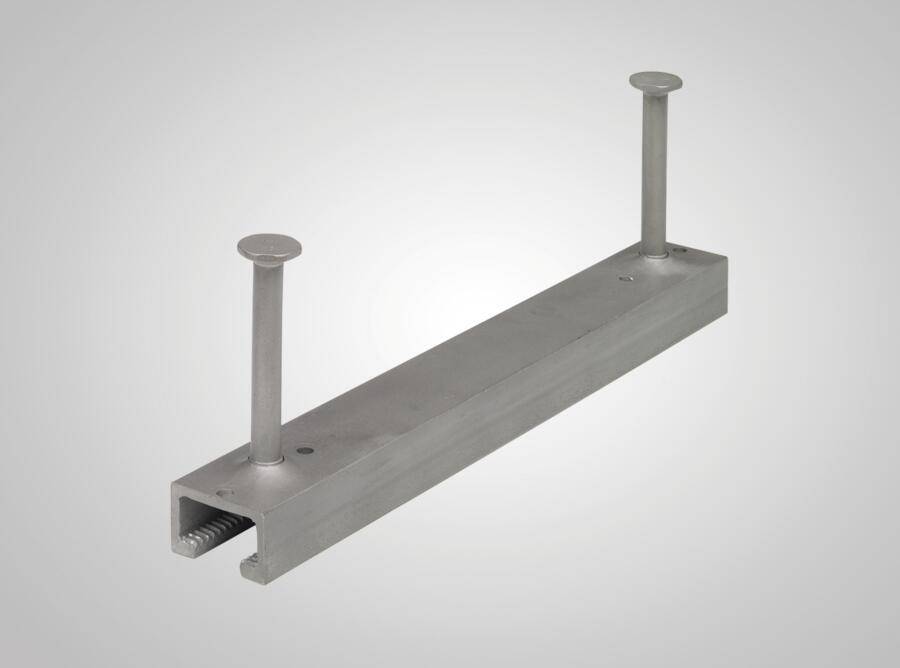

Halfen HZA Cast-in Channels

Halfen HZA channels are a new development for applications where high loads in the longitudinal direction of the channel must also be considered. The special toothing/serration guarantees a positive load transfer into the channel.

In addition, the channels can also reliably absorb fatigue-related vibrations and therefore meet all the requirements for reliable fixing for example of crane runways or of elevator guide rails.

Features and benefits:

• Permanently adjustable fixing solution
• Cost-effective installation using only simple tools
• Effective pre-planning can reduce construction time
• Health-friendly: no dust, no noise, no vibrations
• No damage to the main reinforcement
• Approved for building components with fire protection requirements
• Suitable for installation in concrete compression and tension zones

HALFEN HZA DYNAGRIP:

In addition, Halfen HZA hot-rolled channels can also reliably absorb fatigue-relevant vibrations and therefore meet all requirements for fixing elevator guide rails or crane runways as well as for seismic loads. Certified according to European Technical Assessment ETA-20/1081.

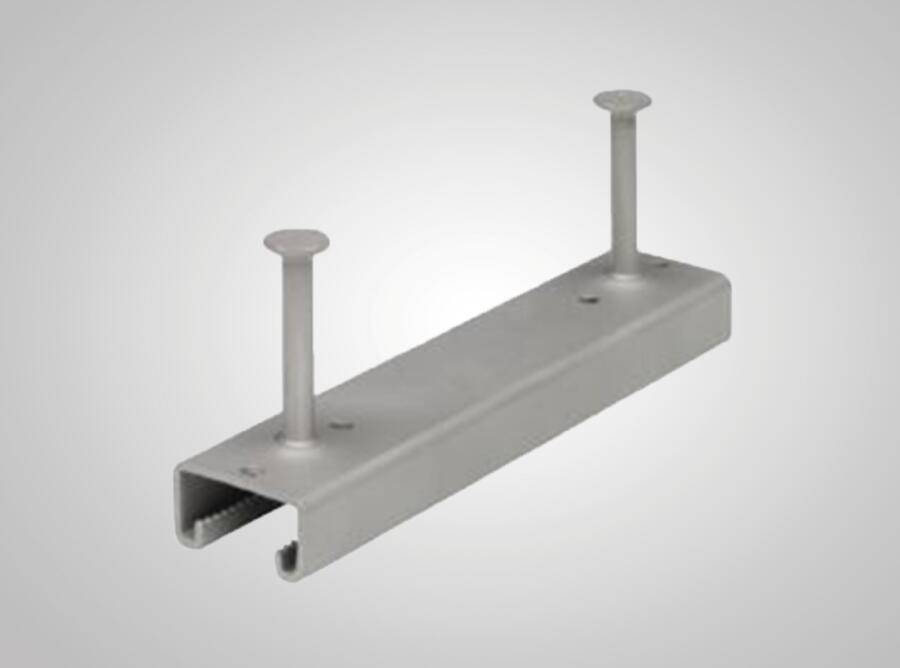

HALFEN HZA:

Halfen HZA Cast-in channels for applications with high loads, where the channel is cast in vertically. Certified according to European Technical Assessment ETA-20/1081 for cold-rolled profiles.
