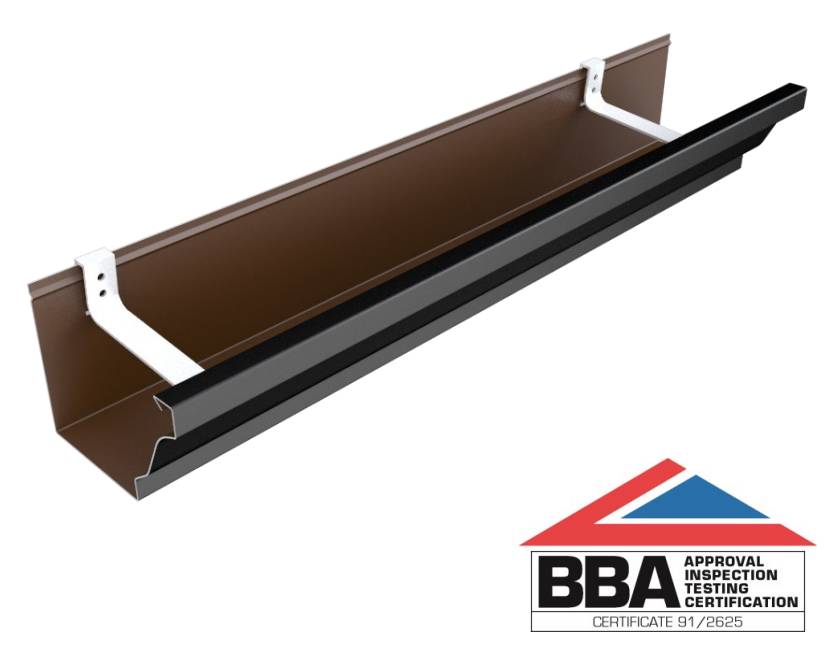

Mustang 5" Seamless Gutter - Seamless 5" Aluminium Ogee Guttering

Name: Mustang 5" Seamless Gutter - Seamless 5" Aluminium Ogee Guttering
Brand: Aluminium Roofline Products Ltd
SKU: xbJTjyFmopxrz5LvGh9wbi

Verified by manufacturer 19 days ago

Aluminium Roofline Products Ltd

Third party certifications:

BBA Agrément Certificate
Certificate type

BBA approved seamless ogee profile 125 mm (5") aluminium guttering.

Jump to:

+44 (0)116 289 4400 Website

Application

Rainwater drainage.

Description

Seamless ogee-profile 125 mm (5") aluminium guttering.

Mustang® Seamless aluminium gutters are roll-formed on-site in lengths of up to 30 metres. No joints mean no leaks, creating a neat, maintenance-free product of the highest quality for peace of mind and the added extra of the visual appeal of smooth, neat lines.

Manufactured from a minimum of 83% recycled aluminium, which can be further recycled once it has reached the end of its useful life.

Features and benefits:

BBA approved, certificate 91/2625.
Pre-coated dual-coloured 0.9 mm-thick 3105 H45 aluminium.
No joints, no leaks.
Quick, easy and safe to install, most of the work is carried out a ground level.
Minimal maintenance, fit and forget.
Strong and fit for purpose, with a life expectancy over 30 years accredited by the BBA.
Quality assured.
No wastage – made to the exact dimensions of the building.
Colourfast – will not fade.
Sustainable product – manufactured using recycled aluminium.
Installed by ARP-trained and approved contractors.
Range of colour options.
Free flow capacity (minimum): 2.33 L/s.
Functional life expectancy: Over 30 years.

General information

Color	Black White Brown Grey
Finish	Matt Satin
Material	Aluminium
Shape	Other
Length	Bespoke
Width	125 mm Guidance for specification option: 5".
Height	87 mm

Uniclass	Pr_65_50_35_06 Aluminium eaves guttersPrimary
CAWS	R10/11 Aluminium gutters R10/311 Aluminium gutters

Specification data - Aluminium eaves gutters

Form	Roll-formed on site. Guidance for specification option: Consult manufacturer for details.
Third-party product certification	British Board of Agrément certificate 91/2625.
Profile	Ogee.
Size (nominal width)	125 mm.
Thickness or gauge	0.9 mm. Guidance for specification option: 3105 H45 aluminium.
Finish	Pre-coated dual coloured Abrasion Resistant System (ARS).
Colour	RAL 9005m. Guidance for specification option: Black. RAL 9016s. Guidance for specification option: White. RAL 7016m. Guidance for specification option: Dark grey. RAL 7037m. Guidance for specification option: Grey. BS08B29m. Guidance for specification option: Brown.
Film thickness (minimum)	Manufacturer's standard.
Integral accessories	Not required. Mustang polycarbonate corners and stop ends with approved sealant as stipulated in BBA 91/2625. Mustang Straight Connectors with approved sealant. Guidance for specification option: For creation of expansion gaps in gutter runs over 30 m. Manufacturer guidance See below for fixing brackets and optional leaf guards.

Outlet size	60 mm. 70 mm.
Fixing brackets	Mill finish aluminium grade 6063 T6, minimum thickness 2 mm.
Leaf guard	Not required. ARP Gutter Grid Roll. Alu-Rex T-Rex. Alu-Rex Gutter Clean.
Installation	Installation must be carried out by ARP Approved Contractor using materials supplied by ARP Ltd in accordance with British Board of Agrément Certificate No 91/2625. Gutter to be formed on site in seamless lengths and secured/ supported with extruded mill finish aluminium fixing support brackets 16 mm wide x 2.0 mm-thick at 450 mm centres, using 4x40mm stainless steel countersunk screws.

Sustainability data

Contains Red List materials	No
Country of material origin	Norway
Country of product manufacture	United Kingdom
Material	Aluminium
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	83 % Guidance for specification option: Minimum.
Expected Life	30 year
