Ocula CM50 Solid and Glazed Partition System
Verified by manufacturer 2 months ago
A 50 mm re-locatable partitioning system.
Application
All sectors covered: commercial, including education, healthcare, MOD (Ministry of Defence), airport and rail, industrial, hospitality, residential, and public. For more detailed information, please consult the manufacturer.
Description

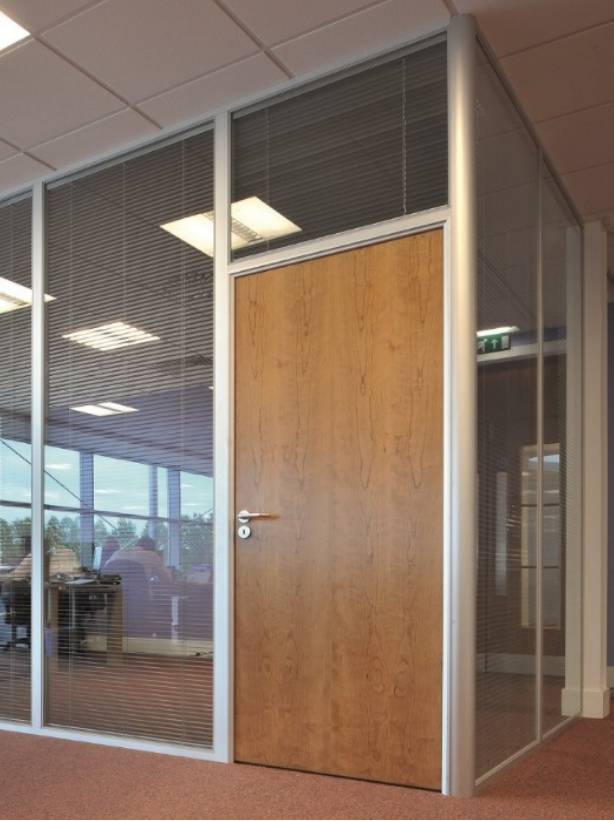

Ocula CM50 is a 50 mm re-locatable partitioning system that provides a lightweight versatile and economical solution to space division. It is available in any combination of solid, fully glazed or part-glazed elevations generally based on 1200 mm modules.
Features and benefits:
- Utilises gypsum plasterboard honeycomb panels for solid elevations.
- Single or twin-glazed options.
- Single glazed can be single centre or single offset.
- Lightweight economical solution.
- Integral blinds for privacy (optional).
- Range of colours and finishes.
- Fully demountable.
- A full range of manifestation options.
General information
Color | White Other Blue Black Bronze |
Finish | Powder-coated |
Material | Glass Aluminium Plasterboard |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
Specification data - Partition panels
Unit size | |
Thickness | 50 mm. |
Partition height (nominal) | Guidance for specification option: Insert requirements or refer to a drawing. |
Width (nominal) | Guidance for specification option: The elevations are generally based on 1200 mm modules. Insert requirements or refer to a drawing. |
Deflection allowance (maximum) | |
Head | No deflection.Guidance for specification option: CM002 reversible head channel. |
Verticals | No deflection.Guidance for specification option:
|
Panel partition type | Solid.Fully glazed.Part glazed. |
Solid panels | |
Type | Not required.Gypsum plasterboard honeycomb panels. |
Finish and colour | Guidance for specification option: Insert requirements or omit. Manufacturer guidanceWall covering/ paint. |
Joint treatment | |
Finish and colour | RAL colour.Guidance for specification option: Consult manufacturer and insert requirements. BS colour.Guidance for specification option: Consult manufacturer and insert requirements. Anodized.Mill. |
Glazed panels | |
Type | Single-glazed, toughened.Single-glazed, laminated.Double-glazed, toughened.Double-glazed, laminated.Manufacturer guidanceA range of glass in nominal thicknesses, up to 7 mm, is available. Single glazed can be single centre or single offset. |
Integral blinds | None.Required.Guidance for specification option: Consult manufacturer for options.
|
Additional features | None.Manifestation.Guidance for specification option: Consult manufacturer for options. Switchable glass.Guidance for specification option: Consult manufacturer for options. |
Door arrangement | |
Type | Hollow core doors.Manufacturer guidanceCM50 is designed to accommodate hollow core doors only. If solid core doors are required, additional support measures are necessary. |
Locking | Guidance for specification option: Consult manufacturer and insert requirements or refer to an ironmongery schedule. |
Door frames | CM200 square aluminium 50 mm door frame.CM210 radiused aluminium 50 mm door frame. |
Door panels | |
Type | 44 mm veneered hollow core door. |
Vision panels | Standard.Bespoke.Guidance for specification option: Consult manufacturer for options and insert requirements. |
Perimeters, skirtings, sills | A01 100 mm laminate face fixed skirting.CM014 100 mm aluminium face fixed skirting.CM100 floor pan and shoe. |
Hardware | Guidance for specification option: Consult manufacturer and insert requirements or refer to an ironmongery schedule. |
Cable management and outlets | CM009/015 service post and infill. |
Other features | Variable angle posts. |
Colour/ Finish | Polyester powder-coated, RAL 9010. Guidance for specification option: Standard colour. Polyester powder-coated, RAL 9006. Guidance for specification option: Standard colour. Polyester powder-coated, RAL. Guidance for specification option: Can be specified in over 200 RAL colours. Consult manufacturer and insert requirements. Polyester powder-coated, BS range. Guidance for specification option: Can be specified in whole BS range. Consult manufacturer and insert requirements. |
Sustainability data
Contains Red List materials | No |
Literature
Ocula CM50 Product Data Sheet
