Ocula FT105 Double Glazed Panel Partition System
Verified by manufacturer 2 months ago
Toughened glass
Toughened glass
UKAS
Certificate type
A 105 mm twin glazed partitioning system.
Application
All sectors covered: commercial, including education, healthcare, MOD (Ministry of Defence), airport and rail, industrial, hospitality, residential, and public. For more detailed information, please consult the manufacturer.
Description
Ocula FT105 is a 105 mm twin-glazed partitioning system that can incorporate various thicknesses and glass types to meet specification criteria. The system offers a modern design, either as a full glass partitioning system or integrated with drywall, to provide a mixture of drywall and glass.
Features and benefits:
- Offers a variety of head and base tracks to client specification.
- Overall width of head and base track 105 mm.
- Stock deflection head tracks allow for ±15 mm and ±25 mm movement.
- Acoustic performance options up to 54 dB.
- Integral blinds and manifestation options.
- Choice of glass joints.
- Provides a seamless integration into drywall, to create a part glazed, part drywall system.
- Fully relocatable.
General information
Color | White Other Blue Brown Copper |
Finish | Powder-coated |
Material | Glass Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke 3000 mm |
Warranty description | One year |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
Specification data - Partition panels
Unit size | |
Thickness | 105 mm. |
Partition height (nominal) | Guidance for specification option: Maximum overall partition height: 3000 mm. Insert requirements or refer to a drawing. |
Width (nominal) | Guidance for specification option: Maximum panel width (within run): 1200 mm. Insert requirements or refer to a drawing. |
Deflection allowance (maximum) | |
Head | +/- 15 mm.Guidance for specification option: F301 50 mm Head Track for use with F302/F303/F304 Infills to Suit 10–17 mm Glass +/- 15 mm. +/- 25 mm.Guidance for specification option: ID004 and F306 Double Glazed Deflection Head for use with F302/F303/F304 Infills to Suit 10–17mm Glass +/- 25mm No deflection.Guidance for specification option: F300/001 26 mm Double Glazed Track for use with F302/F303/F304 Infills to Suit 10–17 mm Glass - no deflection. Manufacturer guidanceStock deflection head tracks. |
Floor | No deflection.Guidance for specification option: F300/001 26 mm double glazed track for use with F302/F303/F304 infills to suit 10–17mm glass - no deflection. |
Verticals | No deflection.Guidance for specification option:
|
Panel partition type | Double glazed. |
Framing, fixing points and joints | Channel/ track. |
Solid panels | |
Type | Guidance for specification option: Consult manufacturer and insert requirements. |
Finish and colour | Guidance for specification option: Insert requirements or omit. |
Joint treatment | |
Type | H-Joint.I-Joint. |
Finish and colour | Translucent. |
Glazed panels | |
Type | Double-glazed, toughened. |
Integral blinds | None.Required.Guidance for specification option: Consult manufacturer for options. |
Additional features | None.Manifestation.Guidance for specification option: Consult manufacturer for options. Switch glass.32 mm applied flat bars. |
Door arrangement | |
Type | Frameless glass doors.Framed glass doors.Sliding glass doors.Flush glazed doors.Timber doors.Manufacturer guidanceStandard and full-height door options available. |
Locking | Guidance for specification option: Consult manufacturer and insert requirements or refer to an ironmongery schedule. |
Hardware | Guidance for specification option: Consult manufacturer and insert requirements or refer to an ironmongery schedule. |
Other features | None.Heat soaked glass.Low-iron glass. |
Colour/ Finish | Polyester powder-coated, RAL 9010. Guidance for specification option: Standard colour. Polyester powder-coated, RAL 9006. Guidance for specification option: Standard colour. Polyester powder-coated, RAL. Guidance for specification option: Can be specified in over 200 RAL colours. Consult manufacturer and insert requirements. Polyester powder-coated, BS range. Guidance for specification option: Can be specified in the whole BS range of colours. Consult manufacturer and insert requirements. |
Sound insulation rating | 41 dB (Rw). 45 dB (Rw). 46 dB (Rw). |
Sustainability data
Contains Red List materials | No |
Third party certifications
UKAS
AC/24435/21- Acoustic Performance - Two Layers 10mm Toughened 41dB
UKAS
AC/24435/22 - Acoustic Performance - One Layer 10mm Toughened and One Layer of 12mm Toughened 46dB
UKAS
AC/24435/23 - Acoustic Performance - One Layer 10mm Toughened and One Layer of 12.8mm Acoustic Laminate 49dB
UKAS
AC/24435/24- Acoustic Performance - One Layer 12mm Toughened and One Layer of 12.8mm Acoustic Laminate 50dB
UKAS
AC/24435/25 - Acoustic Performance - Two Layers of 12.8mm Acoustic Laminate 52dB
UKAS
AC/24435/26 - Acoustic Performance - Two Layers 12mm Toughened 45dB
UKAS
AC/24435/28- Acoustic Performance - One Layer 12.8mm Acoustic Laminate and One Layer of 16.8mm Acoustic Laminate 53dB
UKAS
AC/24435/29 - Acoustic Performance - Two Layers 16.8mm Acoustic Laminate 54dB
UKAS

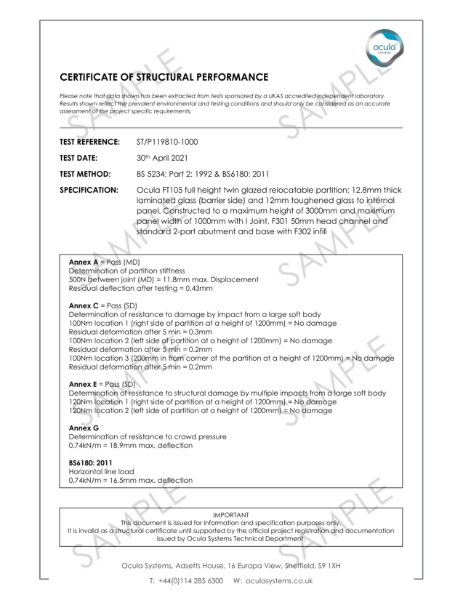

ST/P119810-1000 - Structural Performance - 12.8mm Laminated Glass & 12mm Toughened Glass to 3000mm
UKAS
ST/P119810-1000 - Structural Performance - 16.8mm Laminated Glass & 12mm Toughened Glass 3000mm
