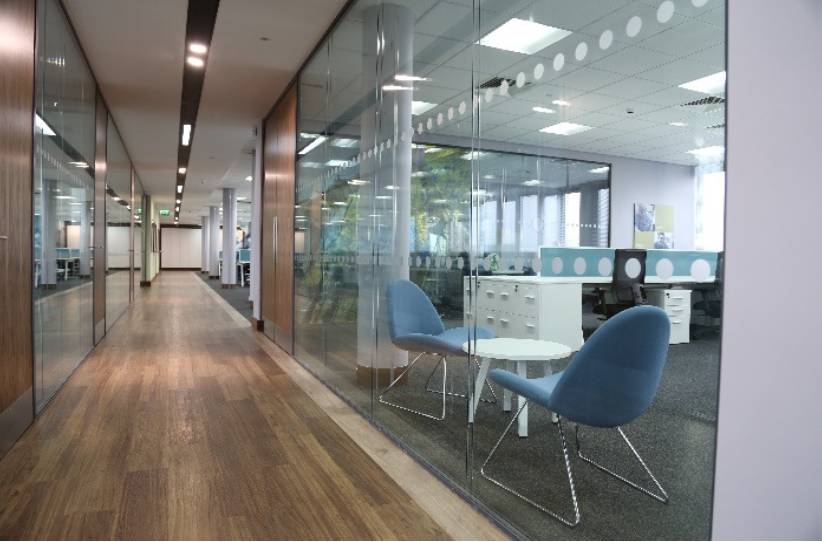

Ocula FT58 Double Glazed Panel Partition System
Verified by manufacturer 2 months ago
Toughened glass
Toughened glass
UKAS
Certificate type
A 58 mm twin glazed partitioning system.
Application
All sectors covered: commercial, including education, healthcare, MOD (Ministry of Defence), airport and rail, industrial, hospitality, residential, and public. For more detailed information, please consult the manufacturer.
Description
Ocula FT58 is a 58 mm twin-glazed partitioning system that can incorporate various thicknesses and glass types to meet specification criteria.
Features and benefits:
- Offers a variety of head and base tracks to client specification.
- Overall width of head and base track 58 mm.
- Stock deflection head tracks allow for ±15 mm and ±25 mm movement.
- Acoustic performance options up to 43 dB.
- A full range of manifestation options.
- Choice of glass dry joints.
- Fully relocatable.
- Maximum construction height 3000 mm.
General information
Color | White Other Yellow Cream Copper |
Finish | Powder-coated |
Material | Glass Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke 3000 mm |
Warranty description | One year |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
Specification data - Partition panels
Unit size | |
Thickness | 58 mm. |
Partition height (nominal) | Guidance for specification option: Maximum overall partition height: 3000 mm. Insert requirements or refer to a drawing. |
Width (nominal) | Guidance for specification option: Maximum panel width (within run): 1200 mm. Insert requirements or refer to a drawing. |
Deflection allowance (maximum) | |
Head | +/- 15 mm.Guidance for specification option: F201 50 mm head track to suit 10–12.8 mm glass +/- 15 mm. +/- 25 mm.Guidance for specification option: F202/203 double glazed deflection head +/- 25 mm. No deflection.Guidance for specification option: F204/001 26 mm double glazed track to suit 10–12.8 mm glass - no deflection. Manufacturer guidanceStock deflection head tracks. |
Floor | No deflection.Guidance for specification option: F204/001 26 mm double glazed track to suit 10–12.8 mm glass - no deflection. |
Verticals | No deflection.Guidance for specification option:
|
Panel partition type | Double glazed. |
Framing, fixing points and joints | Channel/ track. |
Solid panels | |
Type | Guidance for specification option: Consult manufacturer and insert requirements. |
Finish and colour | Guidance for specification option: Insert requirements or omit. |
Joint treatment | |
Type | H-Joint.I-Joint. |
Finish and colour | Translucent. |
Glazed panels | |
Type | Double-glazed, toughened. |
Additional features | None.Manifestation.Switch glass.38 mm applied external flat bars and internal transoms. |
Door arrangement | |
Type | Frameless glass doors.Framed glass doors.Sliding glass doors.Flush glazed doors.Timber doors.Manufacturer guidanceStandard and full-height door options available. |
Locking | Guidance for specification option: Consult manufacturer and insert requirements or refer to an ironmongery schedule. |
Hardware | Guidance for specification option: Consult manufacturer and insert requirements or refer to an ironmongery schedule. |
Other features | None.Heat soaked glass.Low-iron glass. |
Colour/ Finish | Polyester powder-coated, RAL 9010. Guidance for specification option: Standard colour. Polyester powder-coated, RAL 9006. Guidance for specification option: Standard colour. Polyester powder-coated, RAL. Guidance for specification option: Can be specified in over 200 RAL colours. Consult manufacturer and insert requirements. Polyester powder-coated, BS range. Guidance for specification option: Can be specified in the whole BS range of colours. Consult manufacturer and insert requirements. |
Sound insulation rating | 36 dB (Rw). 39 dB (Rw). |
Sustainability data
Contains Red List materials | No |
Third party certifications
UKAS

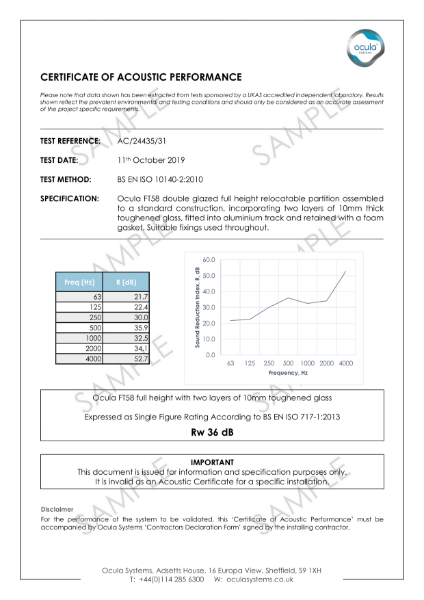

AC/24435/31 - Acoustic Performance - Two Layers 10mm Toughened 36dB
UKAS

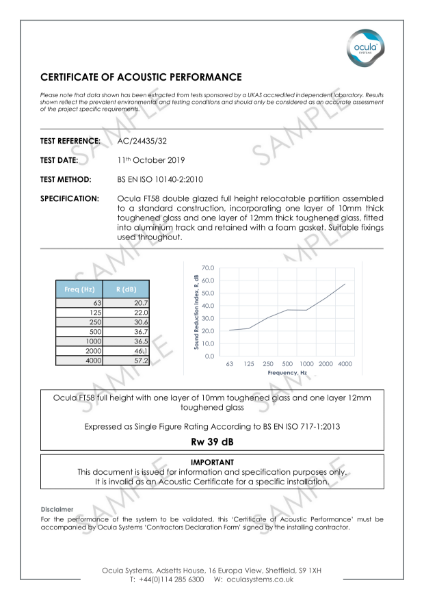

AC/24435/32 - Acoustic Performance - One Layer 10mm Toughened and One Layer of 12mm Toughened 39dB
UKAS

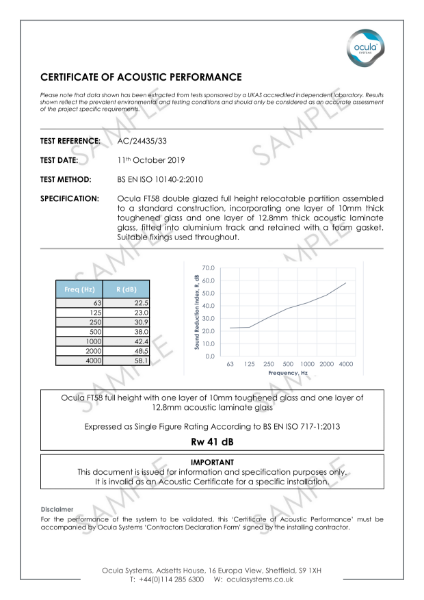

AC/24435/33 - Acoustic Performance - One Layer 10mm Toughened and One Layer of 12.8mm Acoustic Laminate 41dB
UKAS
AC/24435/34- Acoustic Performance - One Layer 12mm Toughened and One Layer of 12.8mm Acoustic Laminate 42dB
UKAS

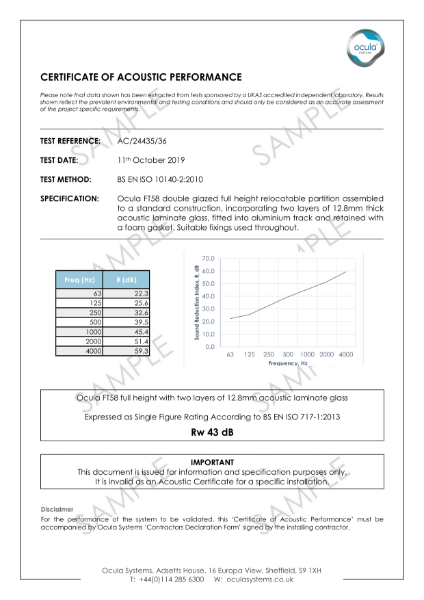

AC/24435/36 - Acoustic Performance - Two Layers of 12.8mm Acoustic Laminate 43dB
UKAS

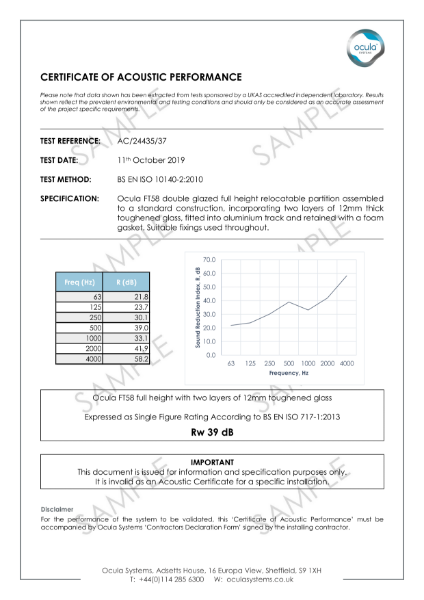

AC/24435/37 - Acoustic Performance - Two Layers 12mm Toughened 39dB
UKAS

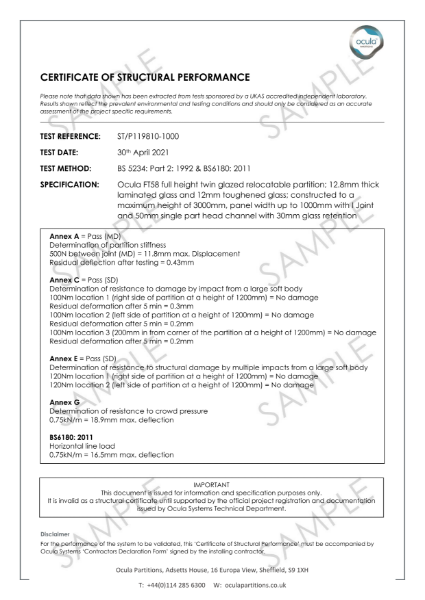

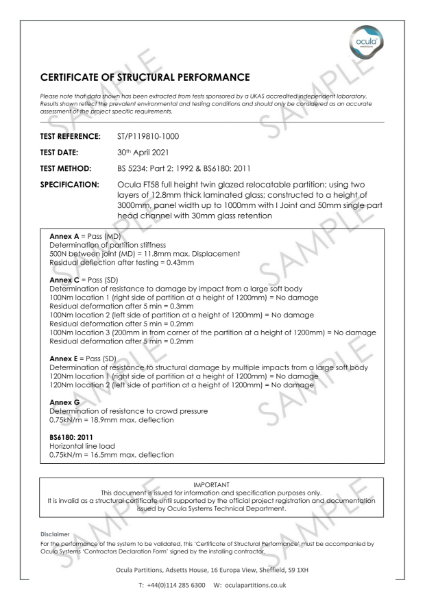

ST/P119810-1000 - Structural Performance - 12.8mm Laminated Glass & 12.8mm Laminated Glass 3000mm
UKAS
ST/P119810-1000 - Structural Performance - 12.8mm Laminated Glass & 12mm Toughened Glass 3000mm
Literature

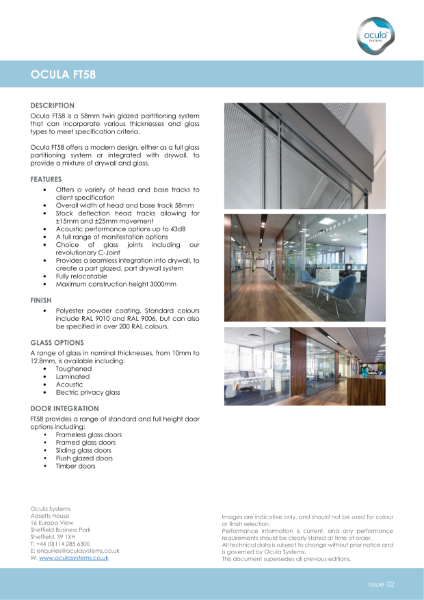

Ocula FT58 Product Data Sheet
