Parascreen - Parapet Fixed Screen System
Verified by manufacturer 3 days ago
Aluminium screen/ louvre with bolt-on aluminium brackets.
Application
For screening off plant and equipment, including HVACR, on roofs.
Description

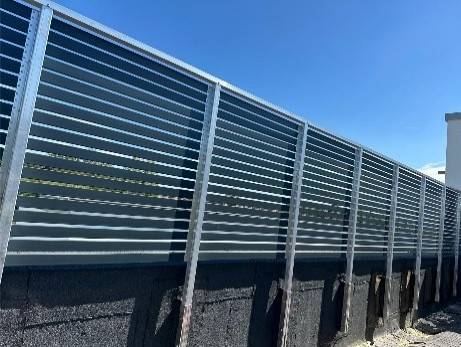

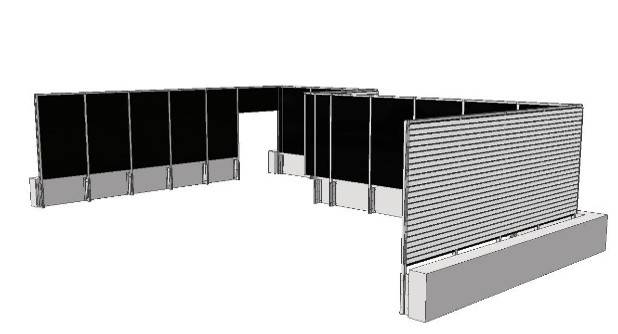

Aluminium screen/ louvre with bolt-on aluminium brackets, fixed to the inside face of a parapet.
Features and benefits:
- Robust, variable height and length, kit form supply.
- Suited to precast concrete parapet construction and can be adapted for other construction situations.
- Does not require penetration through the weatherproof membrane to the horizontal surface.
- Can incorporate any surround type from the range, including slatted, louvre screening or acoustic.
- Can be installed on existing or new parapet construction situations.
- The brackets are designed to allow for insulation buildup and weatherproofing to the internal face of a parapet.
General information
Color | Grey Other |
Finish | Mill Guidance for specification option: Structural framework. Powder-coated Guidance for specification option: Slats or louvres. |
Material | Aluminium Guidance for specification option: Extruded aluminium structure. Stainless steel Guidance for specification option: Fixings. |
Shape | Other Guidance for specification option: Varied to follow parapet as constructed, with height-adjustable screen post fixing to suit requirement. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 20 year |
Uniclass | |
CAWS | Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Specification data - Aluminium louvre panel units
Size (l x w x d) | Manufacturer guidanceInsert requirements or refer to a drawing. |
Material | Extruded aluminium. |
Finish | Mill finish structural framework, powder-coated slats/ louvres. |
Colour | Manufacturer guidanceTo suit project requirement - available in any RAL colour. Insert requirements. |
Construction | Stainless steel screwed construction. |
Louvre configuration | |
Blade orientation | Horizontal. |
Accessories | Not required. Self closing door. Double doors. |
Live load rating | Manufacturer guidanceWind load varied according to site area and reinforced posts are added for high wind load. Consult manufacturer for details. |
Weight | 7–15.257 kg/m². |
Panel Type | Standard Screen. Guidance for specification option: Standard slats can be configured to any of the perimeter sides in any 600 mm increment with option for self closing gate. Louvre100 System. Guidance for specification option: Louvre 100 can be configured to any of the perimeter sides with option for door or double door. Height options in 400 mm increment sizes. SoundShield System. Guidance for specification option: Soundshield can be configured to any of the Parascreen with option for door or double door - Rw 28. PeaceMaker System. Guidance for specification option: Peacemaker can be configured to any of the Parascreen with option for door or double door - NRC 1. Acoustic+ System. Guidance for specification option: Acoustic+ can be configured to any of the Parascreen with option for door or double door - Rw 33. |
Sustainability data
Material | Aluminium Guidance for specification option: Extruded aluminium structure. Stainless steel Guidance for specification option: Fixings. |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | 9 kg CO₂ eq/kg |
Declared unit | 9 kg CO₂ eq/kg Self-declared |
Recyclability | 100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % Guidance for specification option: Up to 100%. |
