Speedscreen - Freestanding Screen System
Verified by manufacturer 3 days ago

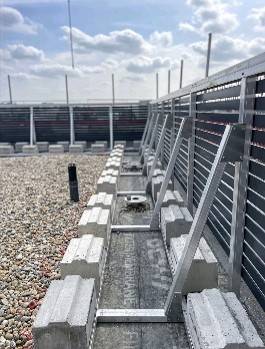

Structural aluminium ballast-weighted screen.
Application
For screening off plant and equipment including HVACR on roofs or at ground level.
Description
Structural aluminium ballast-weighted screen.
Features and benefits:
- Robust, variable height and length, kit form supply.
- The screening system does not depend on fixing points, structural connections to the building, or any penetrations through the weatherproof membrane.
- Can incorporate any surround type from the range, including Guardrail, screening or acoustic.
- Speedscreen can be installed on flat roofs and shallow gradient situations.
General information
Color | Grey Other |
Finish | Mill Guidance for specification option: Structural framework. Powder-coated Guidance for specification option: Slats or louvres. |
Material | Aluminium Guidance for specification option: Extruded aluminium structure. Stainless steel Guidance for specification option: Fixings. Concrete Guidance for specification option: Ballast weights. |
Shape | Square Rectangle Manufacturer guidanceFlat surface - square or rectangle - with height adjustable base structure to suit roof pitch/ falls. |
Length | Bespoke Guidance for specification option: Any size in 600 mm increments in length. |
Width | Bespoke |
Height | Bespoke Guidance for specification option: Any size in 400 mm increments in height. |
Warranty description | 20 year |
Uniclass | |
CAWS | Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Specification data - Aluminium louvre panel units
Size (l x w x d) | Manufacturer guidanceAny size in 600 mm increments in length and 400 mm increments in height. Insert requirements or refer to a drawing. |
Material | Extruded aluminium and concrete. |
Finish | Mill finish structural framework, powder-coated slats/ louvres. |
Colour | Manufacturer guidanceTo suit project requirement - available in any RAL colour. Insert requirements. |
Construction | Stainless steel screwed construction. |
Louvre configuration | |
Blade orientation | Horizontal. |
Accessories | Not required. Self closing door. Double doors. |
Live load rating | Manufacturer guidanceVariable depending screen height and length of leg. Consult manufacturer for details. |
Weight | 20 kg/m². Guidance for specification option: Average across most common roof pitches. |
Panel Type | Standard Screen. Guidance for specification option: Standard slats can be configured to any of the perimeter sides in any 600 mm increment with option for self closing gate. Louvre100 System. Guidance for specification option: Louvre 100 can be configured to any of the perimeter sides with option for door or double door. Height options in 400 mm increment sizes. SoundShield System. Guidance for specification option: Soundshield can be configured to any of the Speedscreen with option for door or double door - Rw 28. PeaceMaker System. Guidance for specification option: Peacemaker can be configured to any of the Speedscreen with option for door or double door - NRC 1. Acoustic+ System. Guidance for specification option: Acoustic+ can be configured to any of the Speedscreen with option for door or double door - Rw 33. |
Sustainability data
Material | Aluminium Guidance for specification option: Extruded aluminium structure. Stainless steel Guidance for specification option: Fixings. Concrete Guidance for specification option: Ballast weights. |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | 9 kg CO₂ eq/kg |
Declared unit | 9 kg CO₂ eq/kg Self-declared |
Recyclability | 100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % Guidance for specification option: 100% recycled aluminium. |
