Promat SUPALUX® - Suspended Ceiling - SCL SLUX-EI60-021S

Name: Promat SUPALUX® - Suspended Ceiling - SCL SLUX-EI60-021S
Brand: Promat UK
SKU: cqS7C8dcECLrb6jFWFSwXU

Verified by manufacturer 6 days ago

Promat UK

Product certifications:

EPD
Certificate type

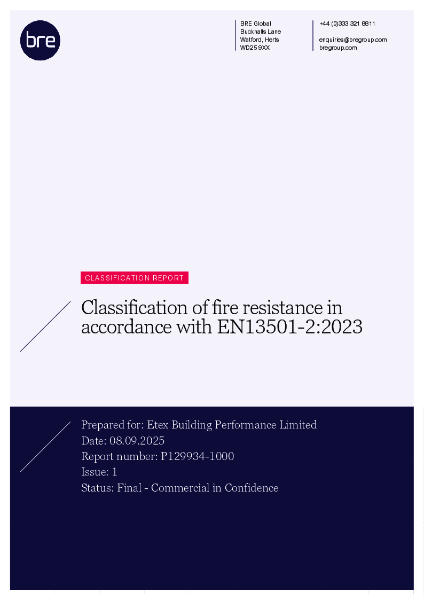

EN 13501-2
Certificate type

Reinforced calcium silicate board for suspended ceiling systems.

Jump to:

0800 145 6033 Website

Application

Suitable for use in suspended ceiling systems.

Description

Promat SUPALUX® is a non-combustible calcium silicate board reinforced with selected fibres and fillers, is resistant to the effects of moisture and will not be subject to physical or performance deterioration when used in damp or humid conditions. The strong rigid board can be installed before the building is watertight, making it especially suitable in semi-exposed applications such as carparks or plantrooms. It is classified A1 non-combustible according to BS EN 13501-1.

Promat SUPALUX® is off-white in colour and has a smooth finish on one face with an embossed reverse face, it can be left undecorated or easily finished with paint.

General information

Color	White
Finish	Smooth Embossed
Material	Calcium silicate Stone wool
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	- Manufacturer guidance Etex Building Performance Limited warrants that its products and component parts shall be durable and free from defects due to faulty manufacturing or factory workmanship. Etex Building Performance Limited also warrants that, when combined to form a system as detailed in the Project Pack specification document including associated CAD drawings and any other specific technical recommendations made in relation to this project, will meet the specified system performance. The full details of this warranty are covered in the Promat Warranty Document, available upon request.

Uniclass	Ss_30_25_10_10 Board suspended ceiling systemsPrimary
CAWS	K40/135 Board-suspended ceiling system K40/20 Board-suspended ceiling systems K11/885 Fire protection board K11/54 Fire protection board

SKU Code	SCL SLUX-EI60-021S

Specification data - Board suspended ceiling systems

Classification data
Suspension grid	Framing: Siniat MFC2525 metal angle hangers; Siniat UT52/Y heavy duty primary channels; Siniat MFCC50 ceiling channels; Siniat MFCE26 edge channels. Guidance for specification option: Suspension hangers: Siniat MFC2525 metal angle hangers at maximum 1000 mm centres. Primary Channels: Siniat UT52/Y heavy duty primary channels at maximum 610 mm centres. Ceiling Channels: Siniat MFCC50 ceiling channels at maximum 610 mm centres. Edge Channels: Siniat MFCE26 edge channels fixed at maximum 500 mm centres to perimeter with suitable fixings by others.
Suspension grid fasteners	Manufacturer's standard.
Insulation	Stone wool insulation. Guidance for specification option: Density: 60 kg/m³ (minimum). Thickness: 2 x 75 mm (minimum). Insulation note: staggered 300 mm (minimum) between layers.
Linings	-
Face layer	Facings outer layer: 12 mm PROMAT SUPALUX®.
Fasteners	Outer layer fixings: 35 mm Siniat performance self tapping screws at maximum 200 mm centres. Guidance for specification option: Ceiling linings fixing note: Screws positioned a minimum 12 mm from board edges and 40 mm from board corners.
Joint treatment	Cover strip: Promat SUPALUX® cover strips behind transverse board joints. Guidance for specification option: Applied behind board joints. Fixed with minimum 32 mm Siniat High Thread Screws at maximum 550 mm centres
Samples required	- Manufacturer guidance Consult manufacturer and insert requirements.
System accessories	Ceiling fillet strip: 100 x 12 mm (W x T) Promat SUPALUX®. Guidance for specification option: Applied directly to channel. Fixed to Siniat ceiling channel and Siniat edge channels with 35 mm Siniat performance self tapping screws at maximum 550 mm centres.
Sealant	FSi Promat Pyrocoustic® Fire Resistant Sealant. Guidance for specification option: All boards abutting surrounding structure should be sealed using FSi Promat Pyrocoustic® Fire Resistant Sealant. All penetrations should use supporting constructions detailed in Promat literature unless superseded by specific test information. For combined, warrantied performance specify FSi fire-stopping products.
Fire performance	EI 60 in accordance with EN 13501-2.
Fire resistance	60 minutes integrity and 60 minutes insulation to EN 1364-2. Guidance for specification option: Direction of fire exposure: above and below only.
Finishes	Decorative. Guidance for specification option: Decorative finishes should be applied in accordance with Promat TDS 056 (https://www.promat.com/en-gb/construction/documentation/) and the Promat Passive Fire Protection Handbook (https://www.promat.com/en-gb/construction/tools-services/fire-protection-handbook/). Non-decorative. Guidance for specification option: None required to achieve quoted performances.
Size	- Manufacturer guidance Consult manufacturer and insert requirements.

Sustainability data

Country of material origin	China
Country of product manufacture	China Manufacturer guidance Applies to the bulk board material only. Other components are from other countries. Consult manufacturer for details.
Material	Calcium silicate Stone wool
Recyclability	Gypsum, calcium silicate and metal components can be recycled depending on the segregation of all materials.
