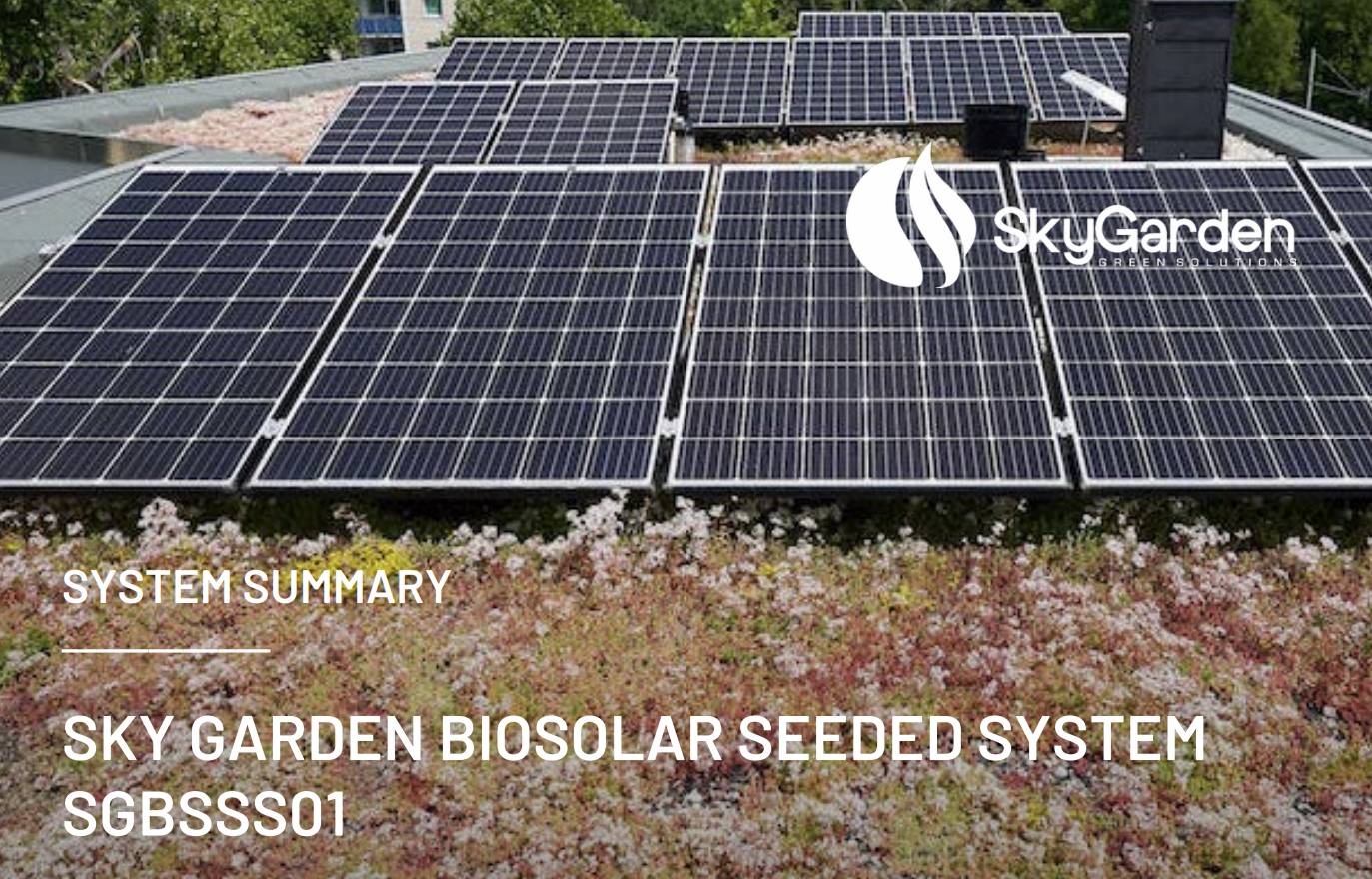

Sky Garden Biosolar Seeded System
Verified by manufacturer today
A BioSolar system combining green roof benefits with photovoltaic efficiency, enhancing biodiversity and reducing water runoff.
Application
Suitable for new build roofs with pitches from 0–5°; generally too heavy for refurbishment. Can mount almost all standard solar modules with inclines of 10°, 15°, or 20°. Modules can be installed in south-facing or east-west orientation, attached vertically (portrait) or horizontally (landscape).
Description
The Sky Garden BioSolar system presents numerous advantages compared to conventional photovoltaics.
Features and benefits:
- Evaporation from the green roof effectively cools the ambient air, thereby boosting the efficiency of the solar panels.
- Contributes to biodiversity enhancement and can mitigate water runoff from the development into the surrounding drainage network.
- Load-supported solar mounting frames are securely anchored and shielded from wind pressure by the mass of the green roof assembly, eliminating the need for roof penetrations during installation.
- Comprehensive design services provided from initial inquiry through to installation.
- Greater species diversity and ecological function with better habitat and pollen/ nectar provision.
General information
Color | Green Other |
Finish | Natural |
Material | Aluminium Vegetation |
Shape | Rectangle Other |
Length | 1390 mm Guidance for specification option: Solar panel dimensions per mounting frame. Bespoke |
Width | 260 mm Guidance for specification option: Solar panel dimensions per mounting frame. Bespoke |
Height | 714 mm Guidance for specification option: Solar panel dimensions per mounting frame. Bespoke |
Uniclass | |
CAWS | Q37/130 Extensive green roofs and biodiverse roofs V90/312 Photovoltaic systems H62/860 Photovoltaic modules H60/860 Photovoltaic modules |
SKU Code | SGBSSS01 |
Sustainability data
Material | Aluminium Vegetation |
Literature
Sky-Garden-Biosolar-Seeded-System-Summary-1.1
PF01 Protection Fleece 1.0
