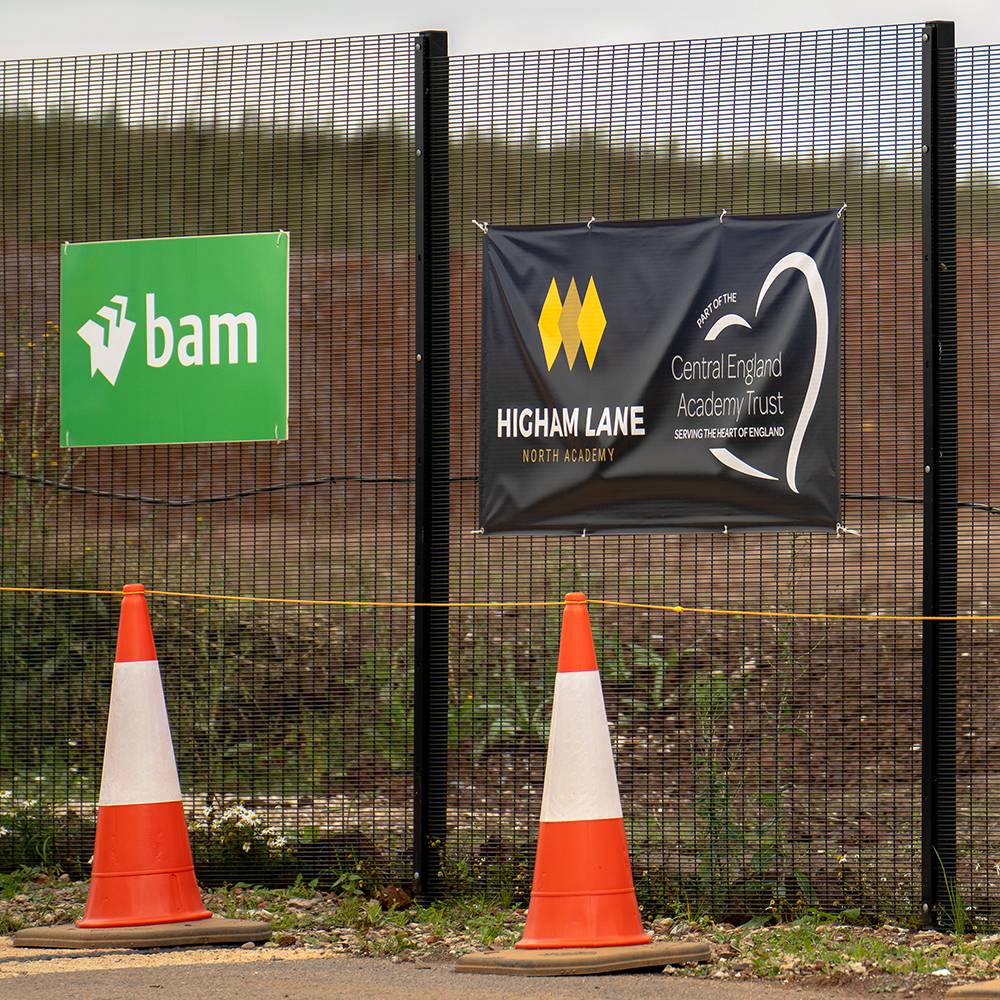

Protek 358 Elite - Security Fence System

Name: Protek 358 Elite - Security Fence System
Brand: Alexandra Security Ltd
SKU: 2uD2gX3BTxihCq6HTxZDke

Verified by manufacturer 4 days ago

Alexandra Security Ltd

Product certifications:

LPCB Certification
Certificate type

SR1 rated security fence system with tight mesh spacing and durable galvanized and powder coated finish for high security applications.

Jump to:

Request BIM

+44 (0)1892 833001 Website

Application

Used for high security facilities, data centres, Ministry of Defence properties, industrial estates, and prisons.

Description

Protek 358 Elite is an improved version of standard prison mesh fencing approved to SR1 security standard by the LPBC (Loss Prevention Certification Board). SR1 security fencing withstands opportunistic attempts at forced entry using basic tools such as cable cutters, screwdrivers, knives and hammers for a period of time. This combined with Protek 358's tight mesh spacing creates a security fence that is very hard to climb, cut through or force entry.

Features and benefits:

Panels have mesh size 12.5 x 76.2 mm with 4 mm wire.
Manufactured to BS 4102 and galvanized to BS EN 10244-2:2001 class D.
Weld strength is 75% of the minimum tensile strength of the wire (tensile range 540-690 N/m2).
Posts are dig-in with size varying with height.
Posts manufactured to BS EN 10210-2:1997 and galvanized to BS EN 10346:2009.
Panels and posts are galvanized before being powder coated to BS EN 13438:2005 with minimum 100 micron coating.
Standard colour is RAL 6005 (Moss Green).
Other RAL colours available as special order including marine grade coating.
Fixings include clamp bar 40 x 5 mm, M8 cup square stainless steel security bolt, and M8 non-removable shear nut.
Post options include cranked posts, face fix, threaded insert posts, and base-plate options available as special order.

General information

Color	Green Black Other Beige Blue Bronze Brown Copper Cream Gold Grey Ivory Orange Pink Purple Red Silver Turquoise White Yellow Show more
Finish	Powder-coated
Material	Steel
Shape	Rectangle
Length	Bespoke
Width	2515 mm
Height	1833 mm 2138 mm 2442 mm 3001 mm 2515 mm
Warranty description	15 year

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/126 Open mesh steel panel security fencing Q40/28 Open mesh steel panel security fencing Q40/430 Proprietary fencing Q40/30 Proprietary fencing

Specification data - Metal mesh panel fencing systems

Classification data
Category	2.
Posts	Carbon steel posts and plastic caps.
Panels	Carbon steel welded mesh panels, 12.5 x 76.2 mm – 4 mm wire.
System accessories	Cranked posts. Guidance for specification option: Internal and external/ top and bottom. Face fix. Guidance for specification option: For flush against the wall. Threaded insert posts. Base plated. Guidance for specification option: Flush to the front, back or centrally, available as special order for installation onto concrete and other hard surfaces.
Fence height	1.8 m. Guidance for specification option: Panel Size Height x Width: 1,833 x 2,515 mm Overall Length of Post: 2,450 mm Post size: 60 x 60 mm 2.1 m. Guidance for specification option: Panel Size Height x Width: 2,138 x 2,515 mm Overall Length of Post: 2,800 mm Post size: 60 x 60 mm 2.4 m. Guidance for specification option: Panel Size Height x Width: 2,442 x 2,515 mm Overall Length of Post: 3,100 mm Post size: 60 x 60 mm 3.0 m. Guidance for specification option: Panel Size Height x Width: 3,001 x 2,515 mm Overall Length of Post: 3,750 mm Post size: 80 x 40 mm
Post centres	2440 mm.
Finish:	Galvanized and powder coated to BS EN 13438 (100 microns, minimum).
Colour:	RAL 6005 (Moss green). Guidance for specification option: Other RAL colours available as special order, including marine grade coating. Consult manufacturer for details and insert requirements.
Fixings	Clamp bar, M8 x (varies with post size) cup square stainless steel security bolts and M8 non-removeable shear nuts.
