SolarGard Pulsar Plus - Weld-Mesh Clamp Bar System

Name: SolarGard Pulsar Plus - Weld-Mesh Clamp Bar System
Brand: Alexandra Security Ltd
SKU: qvXq2KvS7E7k535QE27hFf

Verified by manufacturer 1 day ago

Alexandra Security Ltd

Product certifications:

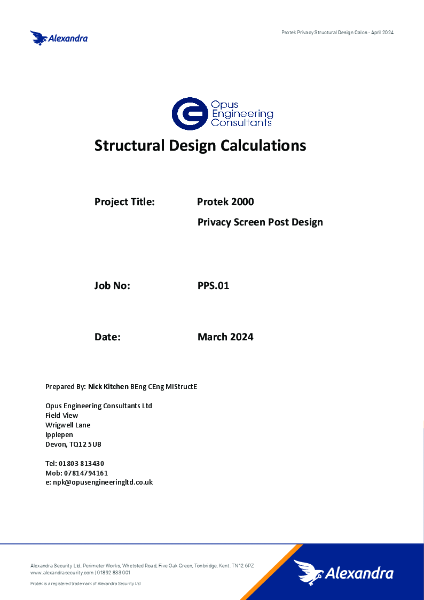

Product Design Assessment
Certificate type

A weld-mesh clamp bar system with timber privacy inserts designed for secure perimeter fencing with obscured sight lines and no hand or foot ledges.

Jump to:

Request BIM

+44 (0)1892 833001 Website

Application

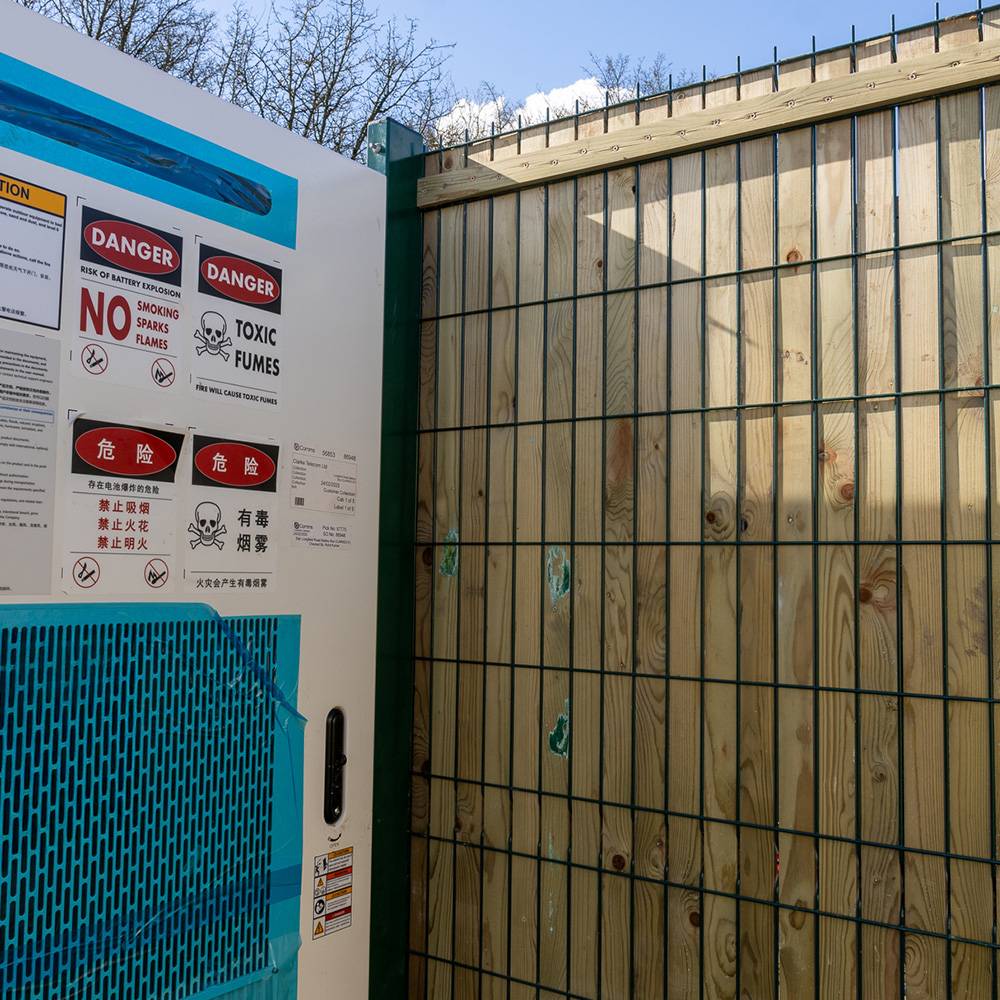

Recommended as a perimeter fencing system around battery storage compounds. Provides a secure anti-climb deterrent with added timber inserts for privacy.

Description

SolarGard Pulsar Plus seamlessly combines security, aesthetics, and privacy, making it the perfect choice for situations where maintaining obscured lines of sight and preserving the appearance of the fence line is crucial. A standard timber fence will not provide the required level of security.

Features and benefits:

Timber inserts can be inserted within the mesh panels and are secured to the rear of the fence with a strong fixing baton.
This creates a fencing surface that has no hand or foot ledges, significantly increasing the difficulty of climbing.
Combined with matching gates, it is particularly well-suited for secure energy storage compounds.
Panels and posts are galvanized before being powder coated to BS EN 13438:2005 with a minimum 100 micron thickness.
Standard colour is RAL 6005 Moss Green, with other RAL colours available as special order including marine grade coating.
Posts are 100 x 50 mm SHS (3 mm thick) with plastic caps supplied.
Triangular folds: 3 per panel.
Clamp bar is a 41 x 21 mm channel running the full length of the mesh panel.
Weld strength is 75% of the minimum tensile strength of the wire (tensile range 540-690 N/m²).

General information

Color	Green Other
Finish	Powder-coated
Material	Steel Timber
Shape	Rectangle
Length	Bespoke
Width	2500 mm
Height	1800 mm 2000 mm 2400 mm
Warranty description	40 year

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/28 Open mesh steel panel security fencing Q40/30 Proprietary fencing Q40/126 Open mesh steel panel security fencing Q40/430 Proprietary fencing

SKU Code	SolarGard Pulsar Plus

Specification data - Metal mesh panel fencing systems

Classification data
Category	2.
Posts	Carbon steel posts and plastic caps
Panels	Carbon steel welded mesh panels, 200 x 50 mm – 5 mm wire.
System accessories	Timber slats (19 x 50 mm), planned finish and pressure treated. Guidance for specification option: Supplied in loose form. Cranked posts. Guidance for specification option: Internal and external/ top and bottom. Face fix. Guidance for specification option: For flush against the wall. Base plated. Guidance for specification option: Flush to the front, back or centrally, available as special order for installation onto concrete and other hard surfaces.
Fence height	1.8 m. Guidance for specification option: Panel Size Height x Width: 1,730 x 2,500 mm Overall Length of Post: 2,550 mm Post size: 100 x 50 mm 2.0 m Guidance for specification option: Panel Size Height x Width: 1,930 x 2,500 mm Overall Length of Post: 2,800 mm Post size: 100 x 50 mm 2.4 m Guidance for specification option: Panel Size Height x Width: 2,330 x 2,500 mm Overall Length of Post: 3,250 mm Post size: 100 x 50 mm
Post centres	2510 mm.
Finish:	Galvanized and powder coated to BS EN 13438 (100 microns, minimum).
Colour:	RAL 6005 (Moss green). Guidance for specification option: Other RAL colours available as special order, including marine grade coating. Consult manufacturer for details and insert requirements.
Fixings	Clamp bar, 41 x 21 mm channel, M8 x 140 cup square security bolt and M8 sheer nuts and washers.
