SolarGard Titan - Security Fence System

Name: SolarGard Titan - Security Fence System
Brand: Alexandra Security Ltd
SKU: mhbR8YM3XKKa1hJ6z98ncD

Verified by manufacturer 4 days ago

Alexandra Security Ltd

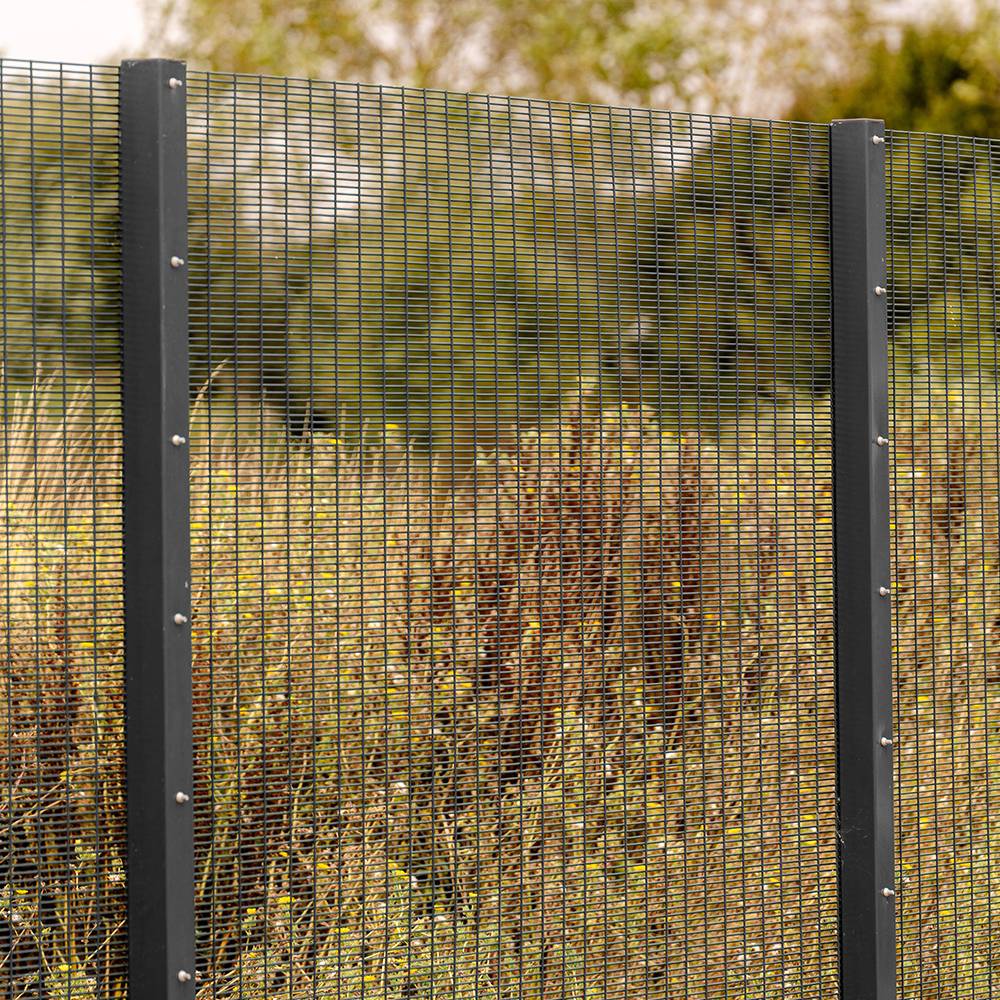

High security mesh fencing system with tight mesh spacing and SR1 rating for enhanced protection against forced entry.

Jump to:

Request BIM

+44 (0)1892 833001 Website

Application

Used as a high security fencing system where security is the top priority, suitable for areas requiring resistance to climbing and forced entry attempts, including perimeter security for commercial and industrial sites.

Description

The SolarGard Titan system features high security panels that provide a single wire fencing system stronger than deer fencing and other standard mesh fencing.

Features and benefits:

The tight mesh spacing creates a security fence that is very hard to climb, cut through, or force entry.
With SR1 rating, it withstands opportunistic forced entry attempts using basic tools like cable cutters, screwdrivers, knives, and hammers for a period of time.
Panels and posts are galvanized before being powder coated to BS EN 13438:2005 with a minimum 100 micron coating.
Standard colour is RAL 6005 (Moss Green), with other RAL colours available as special order including marine grade coating.
Post options include cranked posts (internal and external/top and bottom), face fix for flush against walls, threaded insert posts, and base-plated posts available as special order for installation onto concrete and other hard surfaces.
Post size varies with height, with post material manufactured to BS EN 10210-2:1997 and galvanized to BS EN 10346:2009.
Weld strength is 75% of the minimum tensile strength of the wire (tensile range 540-690 N/m²).
Mesh size is 12.5 x 76.2 mm with 4 mm wire.

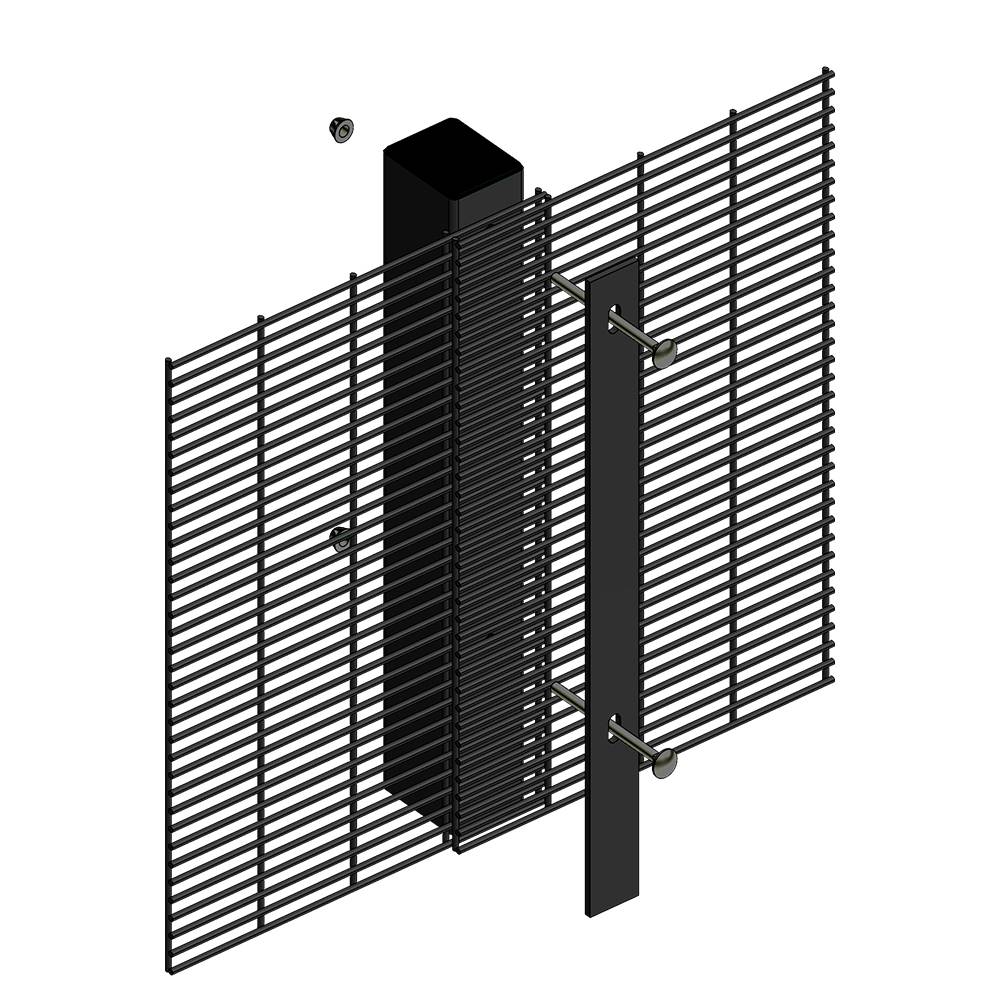

Fixings include clamp bars and M8 stainless steel security bolts.

General information

Color	Green Other
Finish	Powder-coated
Material	Steel
Shape	Rectangle
Length	Bespoke
Width	2515 mm
Height	1800 mm 2100 mm 2400 mm 3000 mm
Warranty description	25 year

Uniclass	Ss_25_14_61_51 Metal mesh panel fencing systemsPrimary
CAWS	Q40/30 Proprietary fencing Q40/430 Proprietary fencing Q40/28 Open mesh steel panel security fencing Q40/126 Open mesh steel panel security fencing

SKU Code	SolarGard Titan

Specification data - Metal mesh panel fencing systems

Classification data
Standard	To BS 1722-14.
Category	3.
Posts	Carbon steel posts
Panels	Carbon steel welded mesh panels, 12.5 x 76.2 mm – 4 mm wire.
System accessories	Cranked posts. Guidance for specification option: Internal and external/ top and bottom. Face fix. Guidance for specification option: For flush against the wall. Threaded insert posts. Base plated. Guidance for specification option: Flush to the front, back or centrally, available as special order for installation onto concrete and other hard surfaces.
Fence height	1.8 m. Guidance for specification option: Panel Size Height x Width: 1,833 x 2,515 mm Overall Length of Post: 2,450 mm Post size: 60 x 60 mm 2.1 m. Guidance for specification option: Panel Size Height x Width: 2,138 x 2,515 mm Overall Length of Post: 2,800 mm Post size: 60 x 60 mm 2.4 m. Guidance for specification option: Panel Size Height x Width: 2,442 x 2,515 mm Overall Length of Post: 3,100 mm Post size: 60 x 60 mm 3.0 m. Guidance for specification option: Panel Size Height x Width: 3,001 x 2,515 mm Overall Length of Post: 3,750 mm Post size: 80 x 40 mm
Post centres	2440 mm.
Finish:	Galvanized and powder coated to BS EN 13438 (100 microns, minimum).
Colour:	RAL 6005 (Moss green). Guidance for specification option: Other RAL colours available as special order, including marine grade coating. Consult manufacturer for details and insert requirements.
Fixings	Clamp bar, M8 x (varies with post size) cup square stainless steel security bolts and M8 non-removeable shear nuts.
